Description

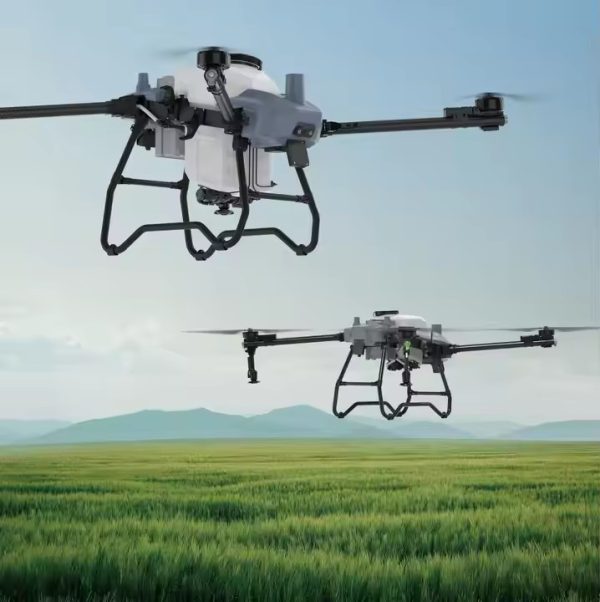

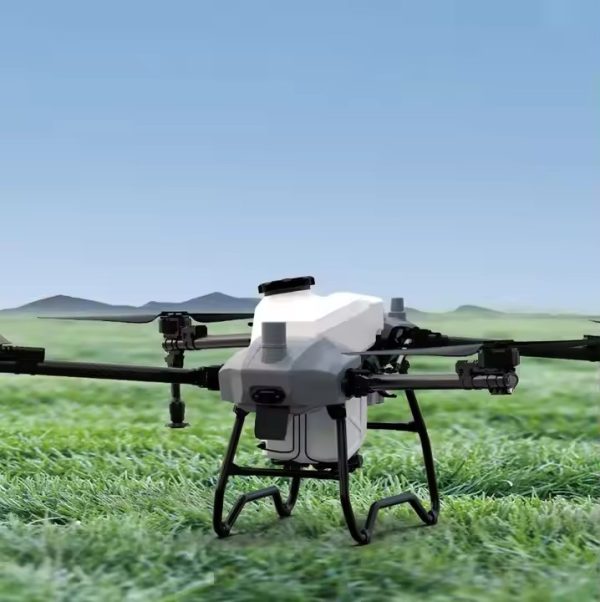

M30/40/50/60 All-in-One Series Agricultural Drone Experience Reduced Maintenance Time And Costs, Enhanced Operational Reliability Even In Challenging Environments, And Precise Navigation With A Clear Aerial View – All Designed To Simplify Operations And Maximize Productivity.
M30/40/50/60 All-in-One Series Agricultural Drone Demo
| Specification | Details | ||
| Model Number | M40 40L (10.57 gal) Agricultural Drone | Weight Excluding Battery | 30 kg (66.14 lb) |

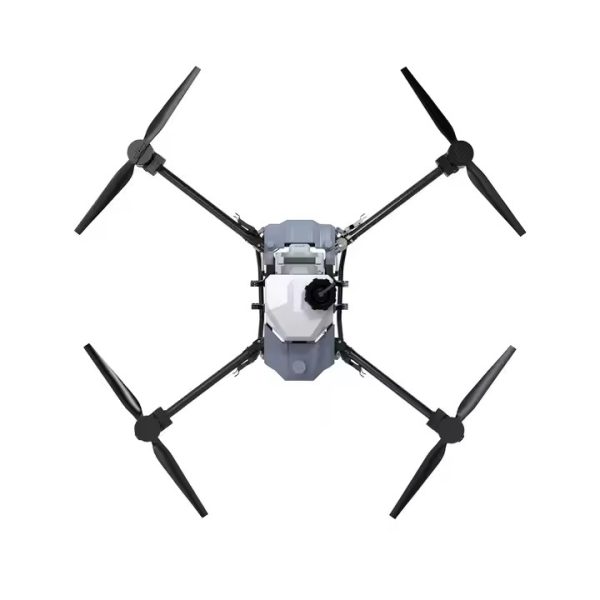

| Structural Design | 4-Axis Foldable | Weight Including Battery | 45 kg (99.21 lb) |
| Waterproof Grade | IP67 | Max. Takeoff Weight | 85 kg (187.39 lb) |
| Obstacle Avoidance System | 4 | Liquid Tank Capacity | 40 L (10.57 gal) |
| Camera Type | HD FPV Camera | Spread Tank Capacity | 56 L (14.79 gal) |
| Intelligent Battery | 18S 30000mAh | Spray Width | 8-20 m |
| Hovering Duration | 28 mins with no load; 7.5 mins with full load | Nozzle Type | Centrifugal nozzles |

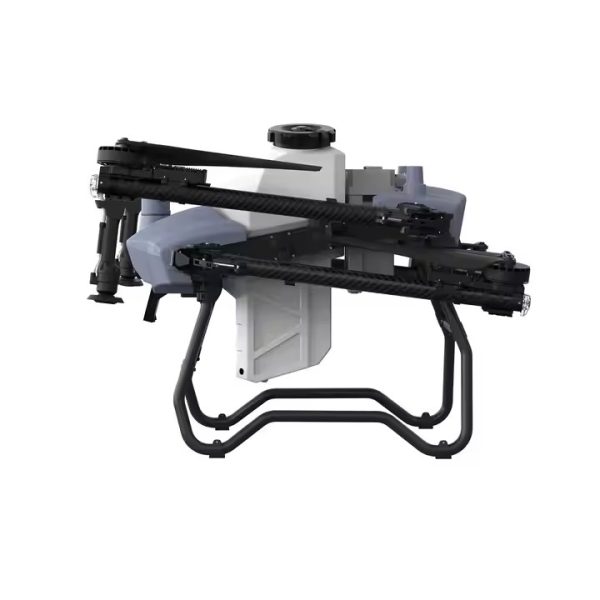

| Dimensions (folded) | 1135 x 735 x 820 mm | Atomizing Size | 30-500 μm |

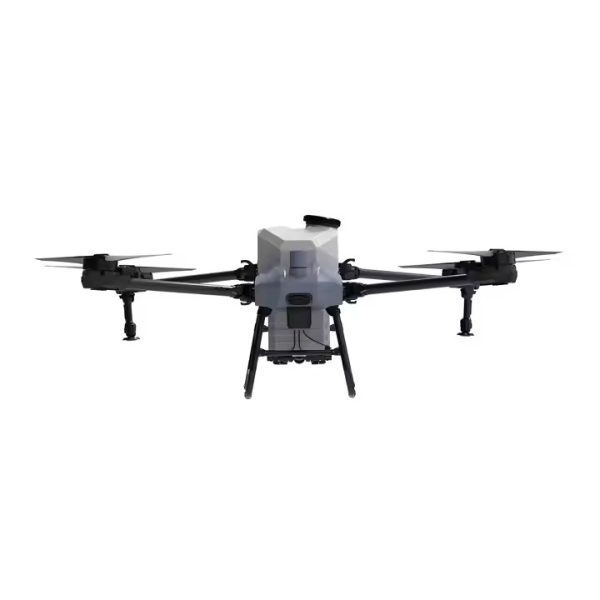

| Dimensions (unfolded) | 2580 x 2758 x820 mm | Max. System Flow Rate | 20 L/min |
| Remote Control | H12 | Smart Charger | 110V-240V 7200W |
Aerodynamic Design
Reduced wind resistance can increase flight endurance by 10%.
U-turn Flight Path
The U-turn angle is small, ensuring smoother flight and higher efficiency.
Explore the Features
Watch the video to discover the unique capabilities of the h400 model and its advanced design.

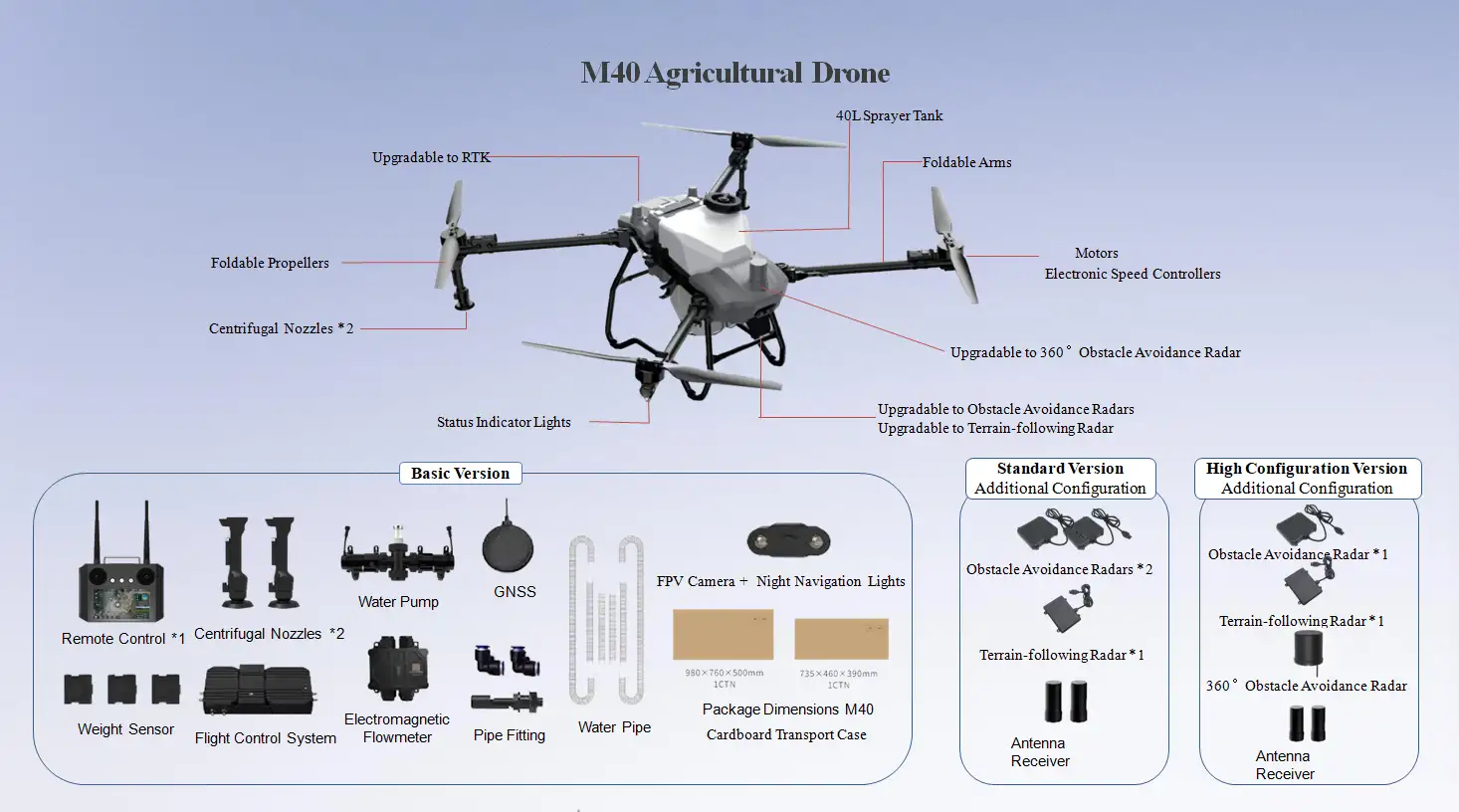

Configuration can be customized as needed

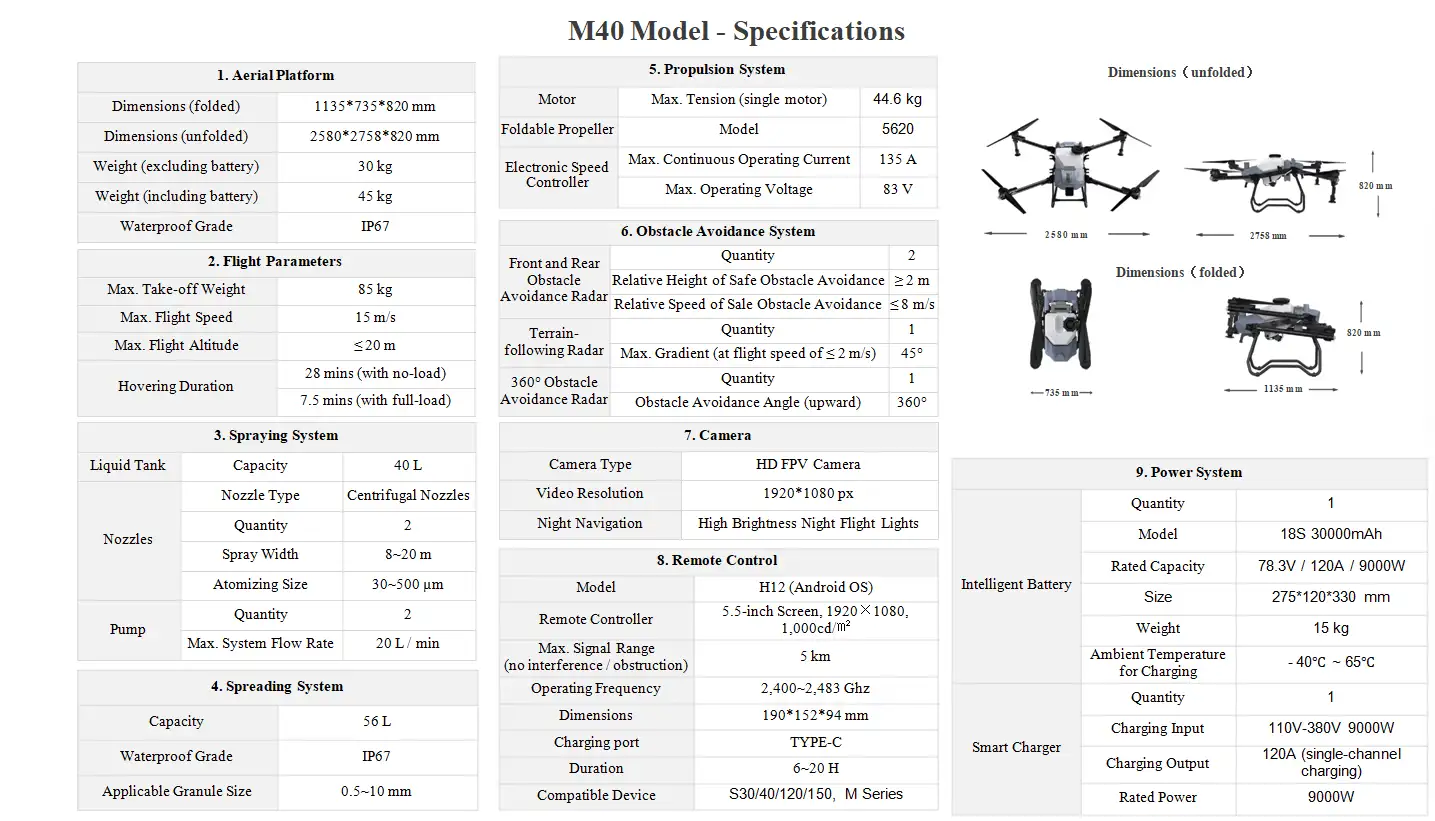

M40 (10.57 gal) Agricultural Drone Specifications
M30/40/50/60 Agricultural Drone Power System
Equipped with 18S 30000mAh intelligent batteries and a rapid intelligent charger. Optimized for quick charging and continuous operation. Its ultra-fast charging capability ensures that agricultural tasks can proceed without delay.
