Description

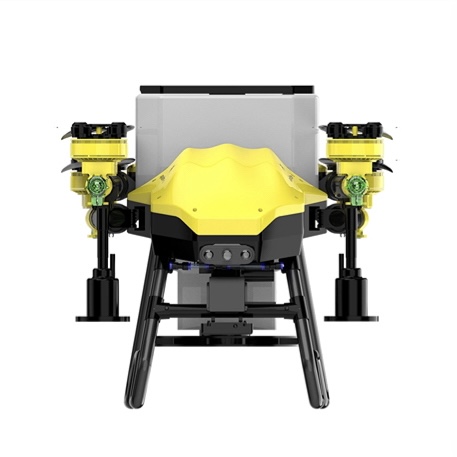

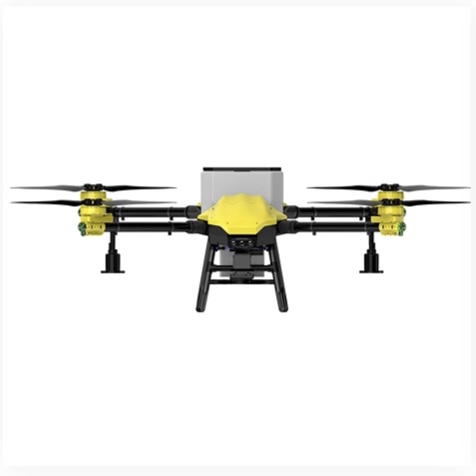

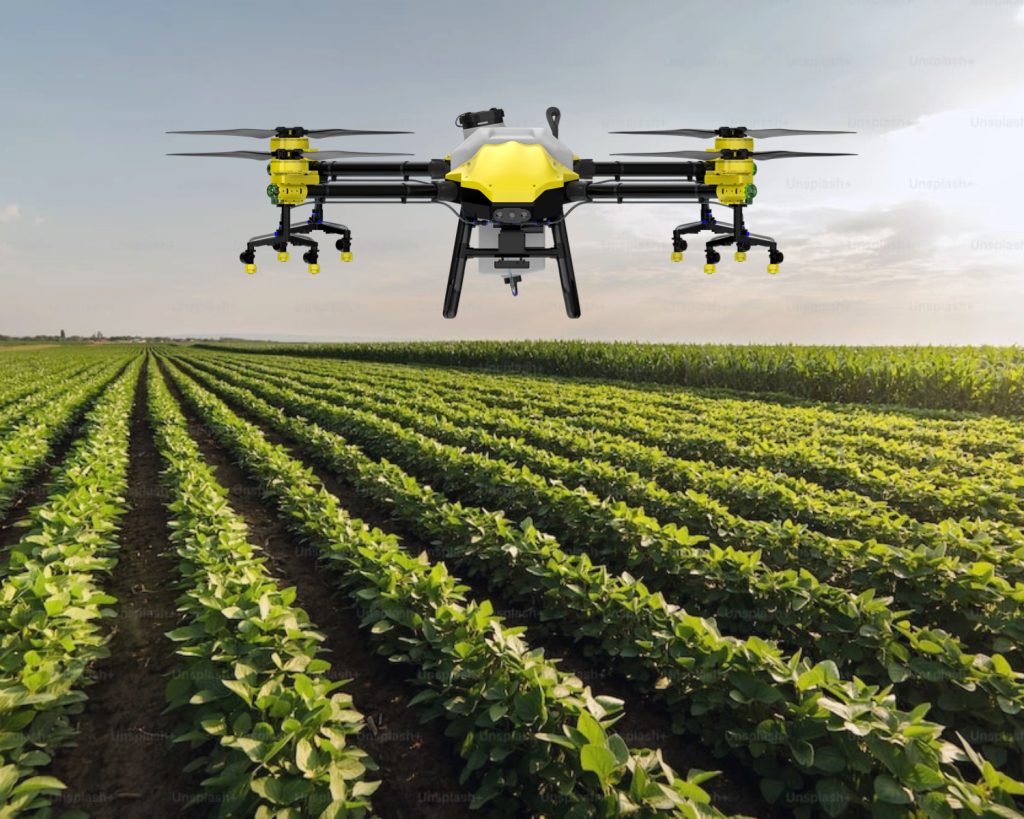

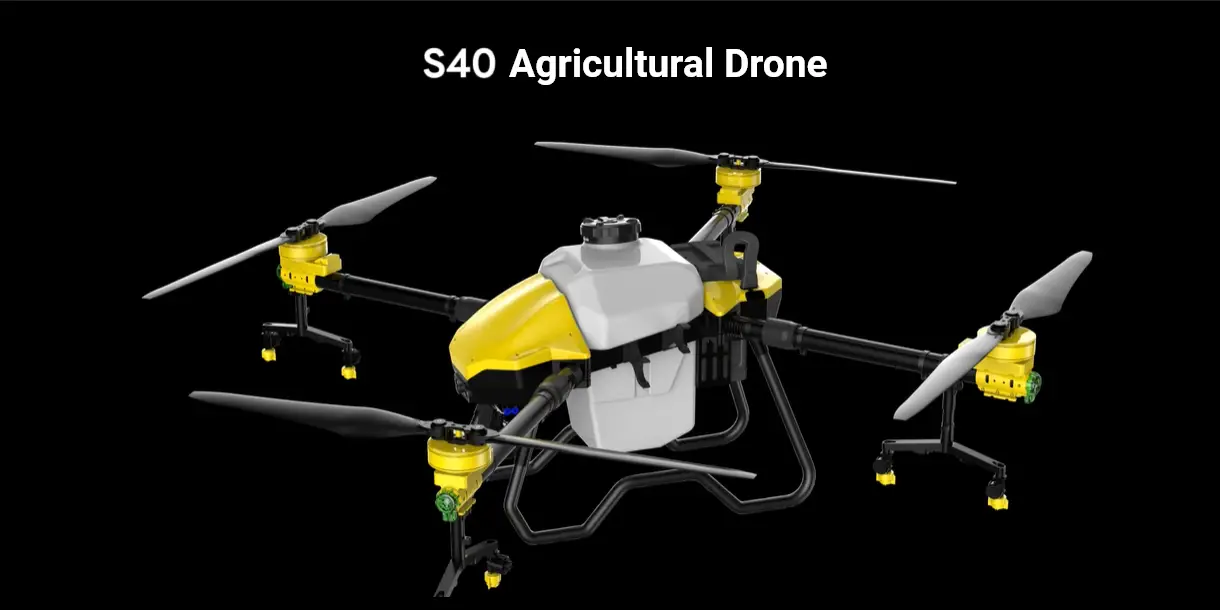

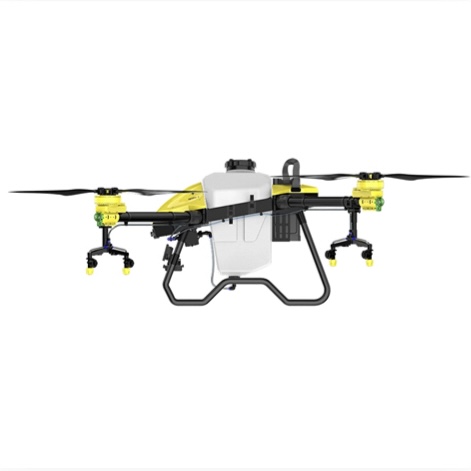

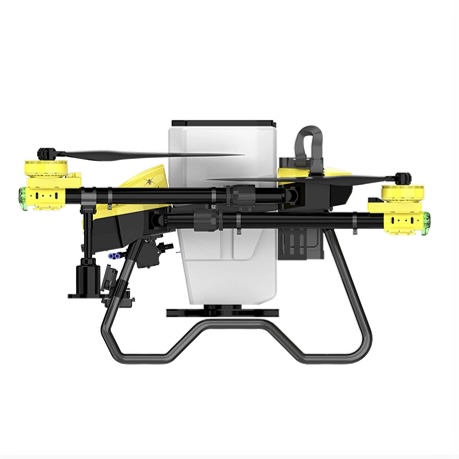

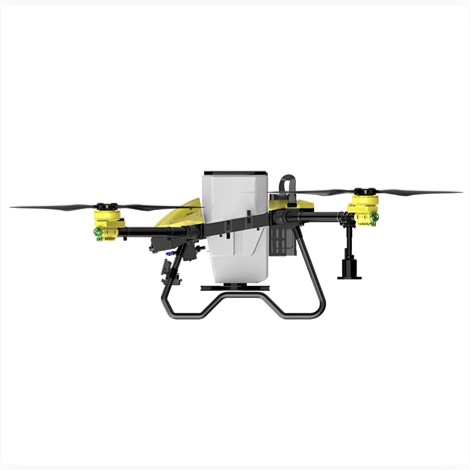

S40 20L (5.28 gal) Agricultural Drone
The S40, Bee Series, is an upgraded version of the S30. It is designed specifically for small-scale farms and features a larger 5.28-gallon capacity and enhanced performance, providing an efficient, cost-effective, and user-friendly solution for precision agriculture.
| Specification | Details | ||
| Model Number | S40 20L (5.28 gal) Agricultural Drone | Weight Excluding Battery | 18 kg (39.68 lb) |
| Structural Design | 4-Axis Foldable | Weight Including Battery | 24.8 kg (54.67 lb) |

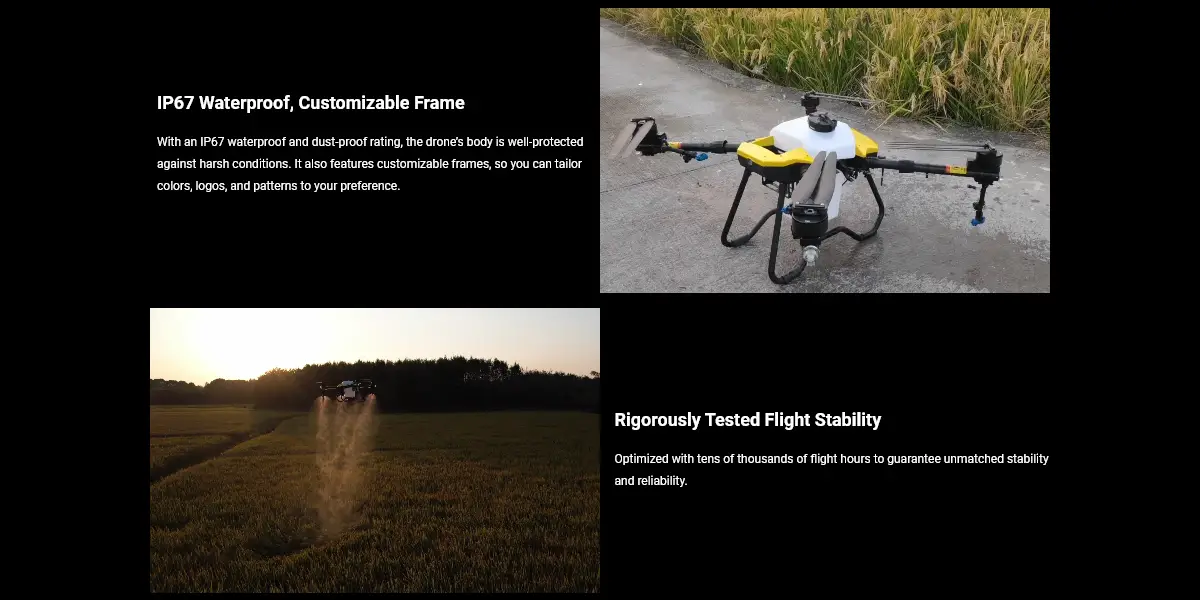

| Waterproof Grade | IP67 | Max. Take-off Weight | 44.8 kg (98.77 lb) |
| Max. Flight Altitude | ≤20 m | Max. Flight Speed | 15 m/s |
| Camera Type | HD FPV Camera | Tank Capacity | 20 L (5.28 Gallon) / 25 KG (55.12 lb) |
| Hovering Duration | 15 mins (with no-load) / 5 mins (with full-load) | Spray Width | 4-12 m |
| Core Components | Battery, Drone, Flight Control, Propulsion System, Spraying System, Remote Controller, Terrain Radar | Nozzle Type | High-pressure Nozzles |

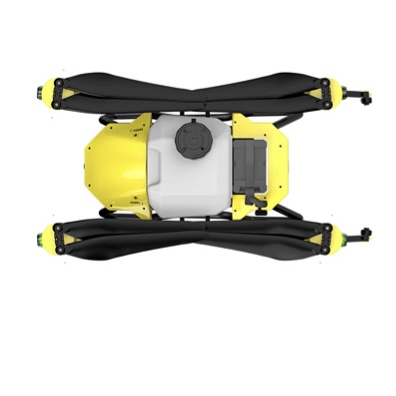

| Dimensions (Folded) | 1010 x 610 x 575 mm | Atomizing Size | 30-400 μm |
| Dimensions (Unfolded) | 1300 x 1100 x 600 mm | Max. System Flow Rate | 8 L/min |
| Material | Carbon fiber + 7075 aviation aluminum | Working Efficiency | 16 Hectare/h |
Comparison Between Drone Spraying and Traditional Manual Spraying of Pesticides

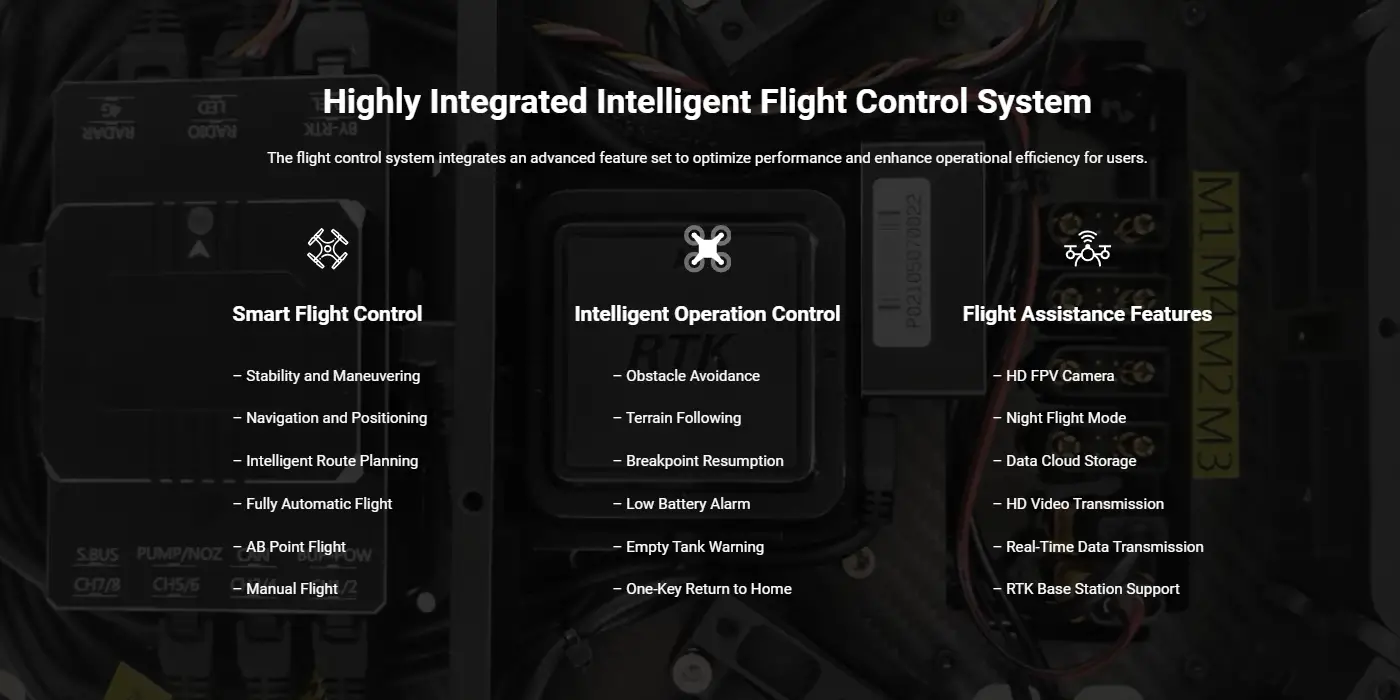

Highly Integrated Intelligent Flight Control System
Terrain Following Radar allows for adaptive flight in varied landscapes, maintaining a consistent altitude, and enhancing safety and precision.
Upgradable to centrifugal nozzles for better atomization effects

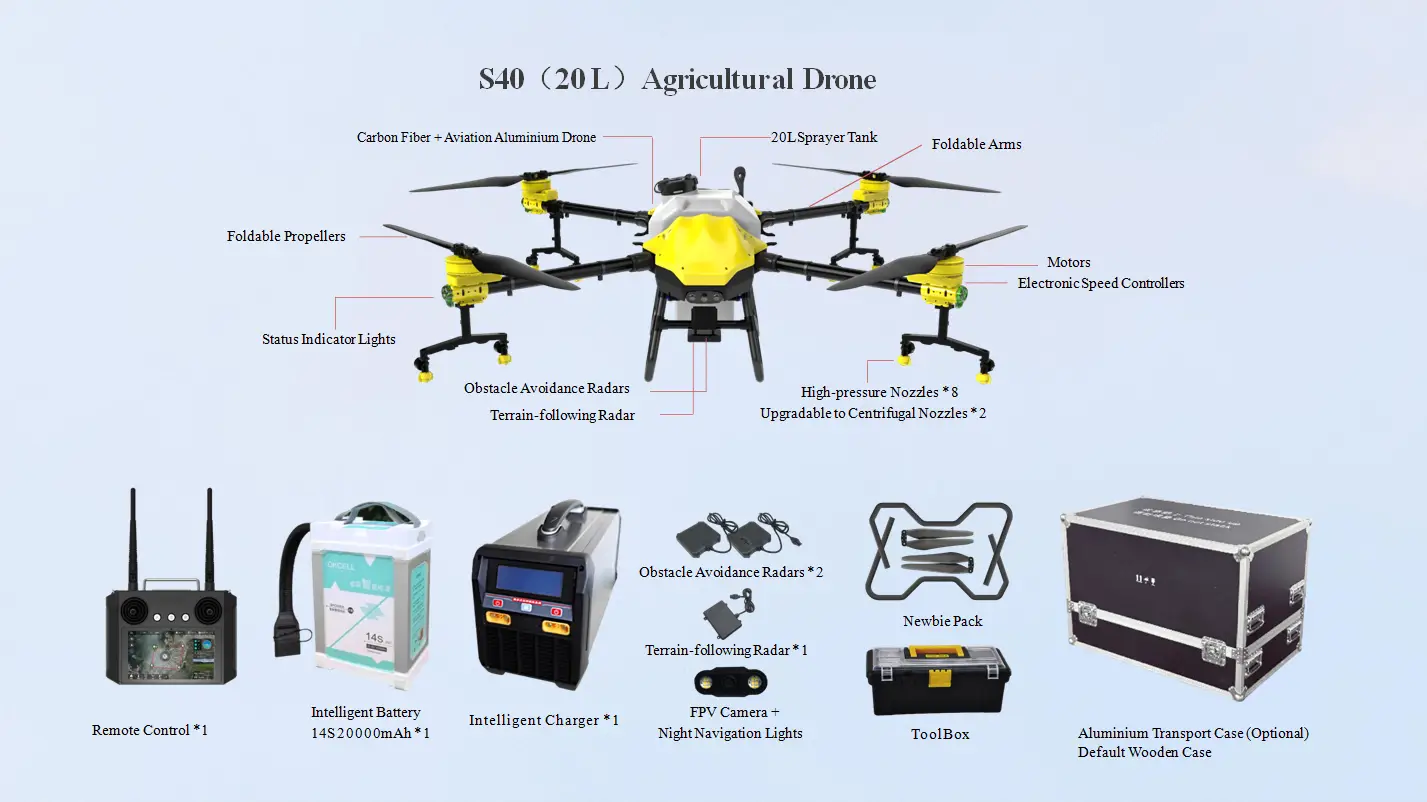

Open Box of S40 20L (5.28 gal) & Accessories

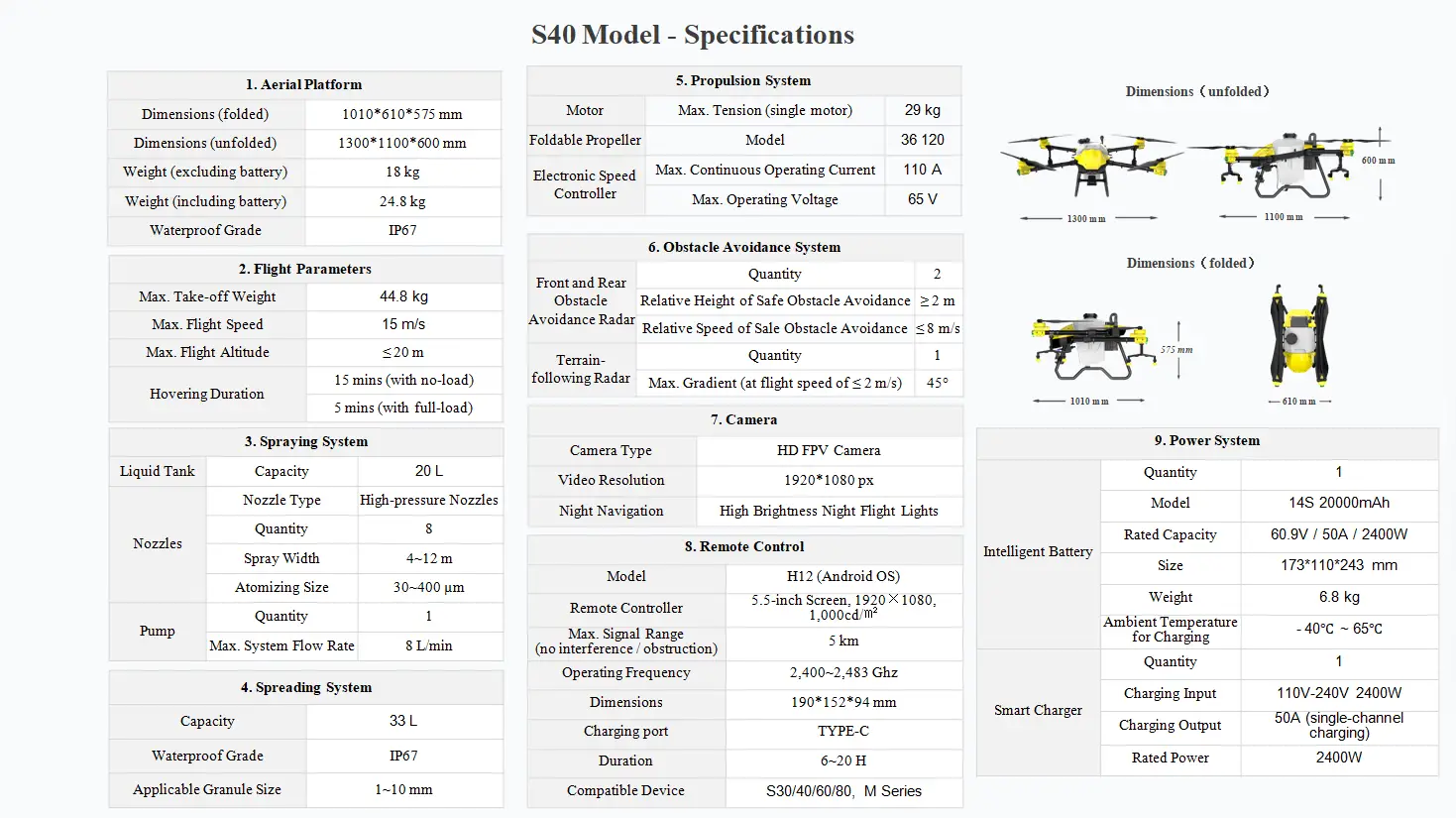

S40 20L (5.28 gal) Specifications
Three operating modes: Fully automatic, AB point, and Manual.
Universal Applications

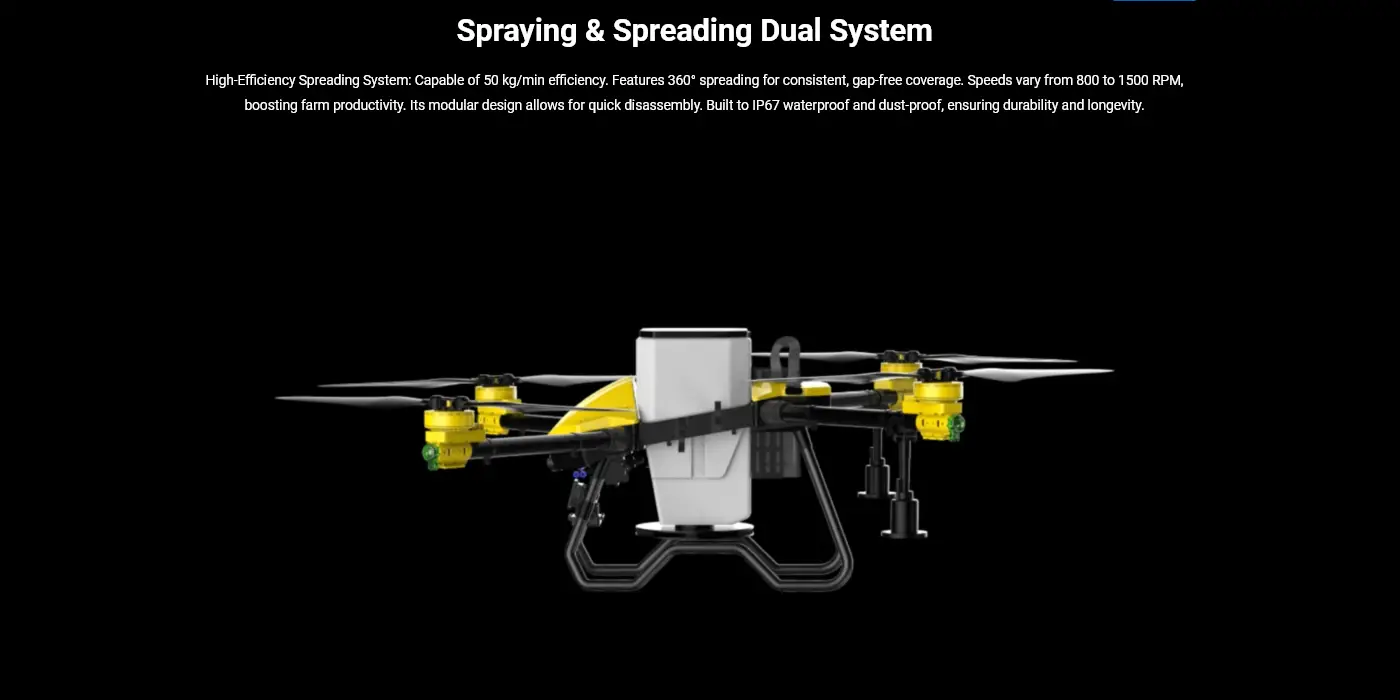

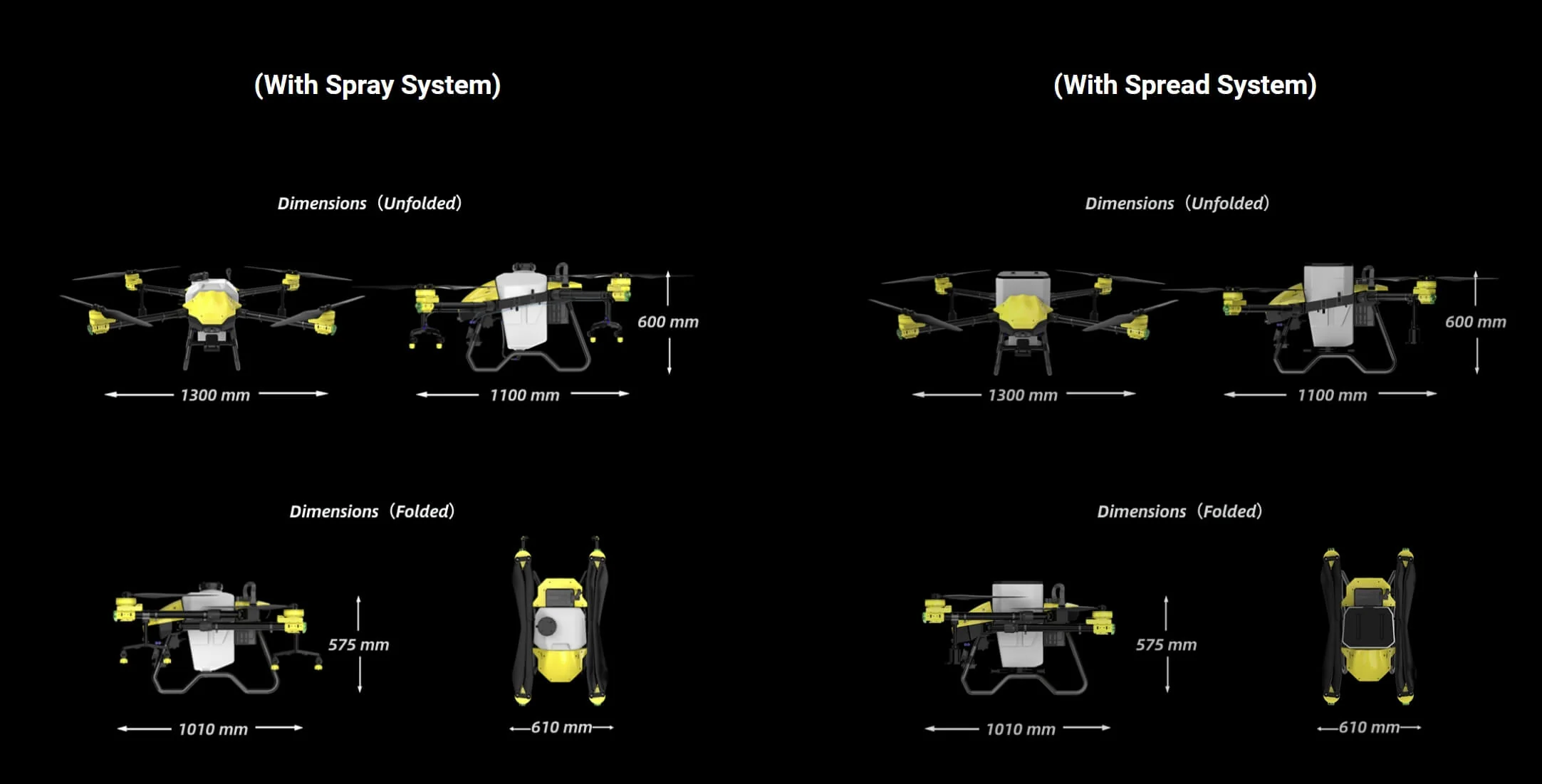

(With Spray System) (With Spread System) Dimensions (Folded) 575 mm 5-610 mm 1010 mm 610 ml . (With Pump System)

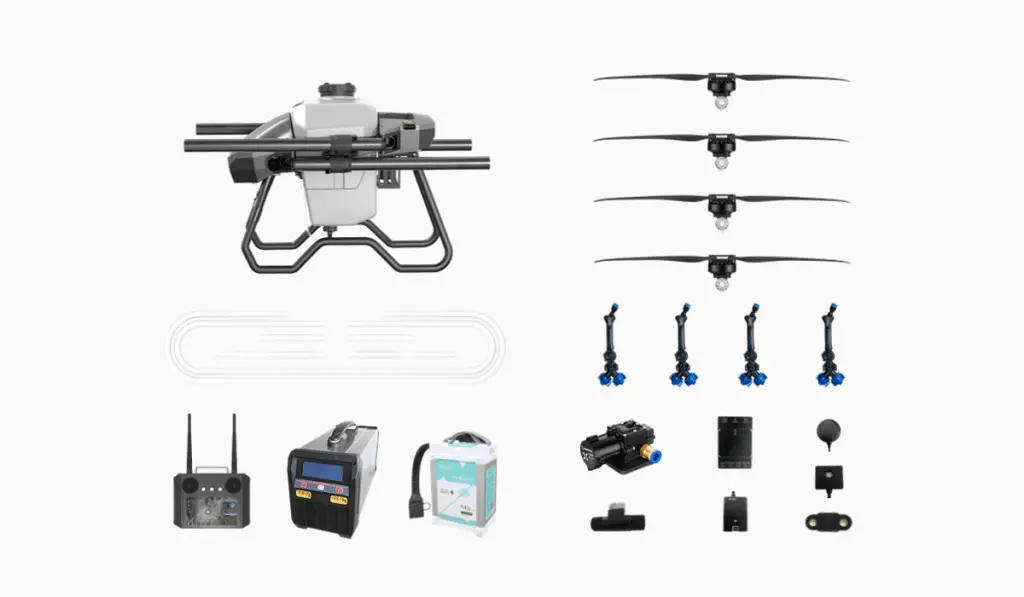

Standard Kit
Frame x1
Propulsion Motor x4
Spray Nozzles x4
Water Pump x1
Flow meter x1
Flight control x1
Power Module x1
GNSS (GPS/Beidou/Glonass) x1
Status Indicator Light x1
FPV camera x1
Night Navigation Light x1
Remote Control x1
Intelligent Battery x1
Intelligent Charger x1

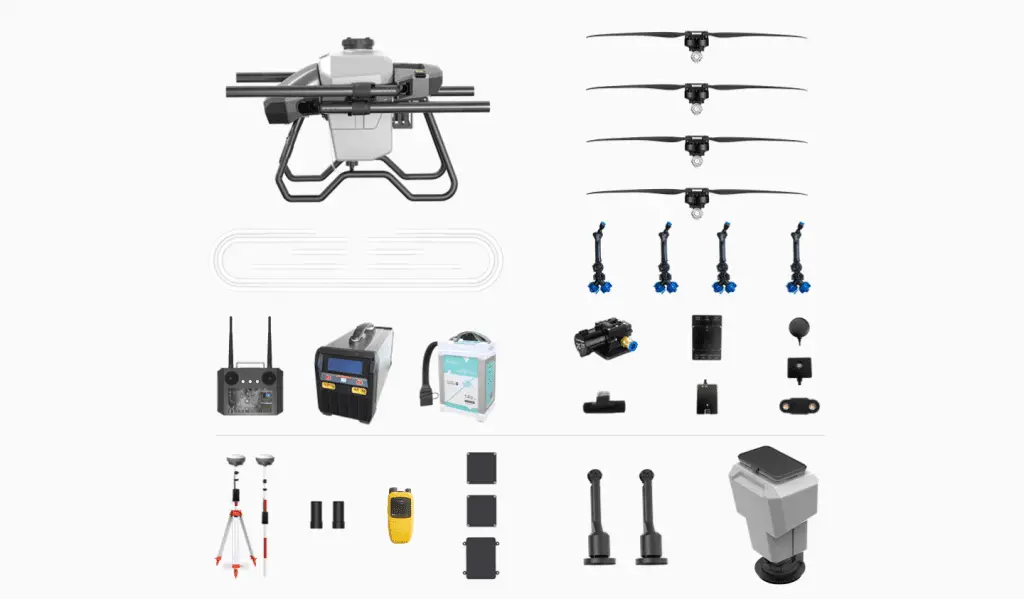

Advanced Kit
Frame x1
Propulsion Motor x4
Spray Nozzles x4
Water Pump x1
Flow Meter x1
Flight control x1
Power Module x1
Base Station RTK x1
RTK Module x1
Handheld Survey Box x1
Terrain Following Radar x1
GNSS (GPS/Beidou/Glonass) x1
Status Indicator Light x1
FPV camera x1
Night Navigation Light x1
Remote Control x1
Intelligent Battery x1
Intelligent Charger x1
Front Obstacle Avoidance Radar x1
Rear Obstacle Avoidance Radar x1
Centrifugal Nozzles x2
Spreading System x1
