Description

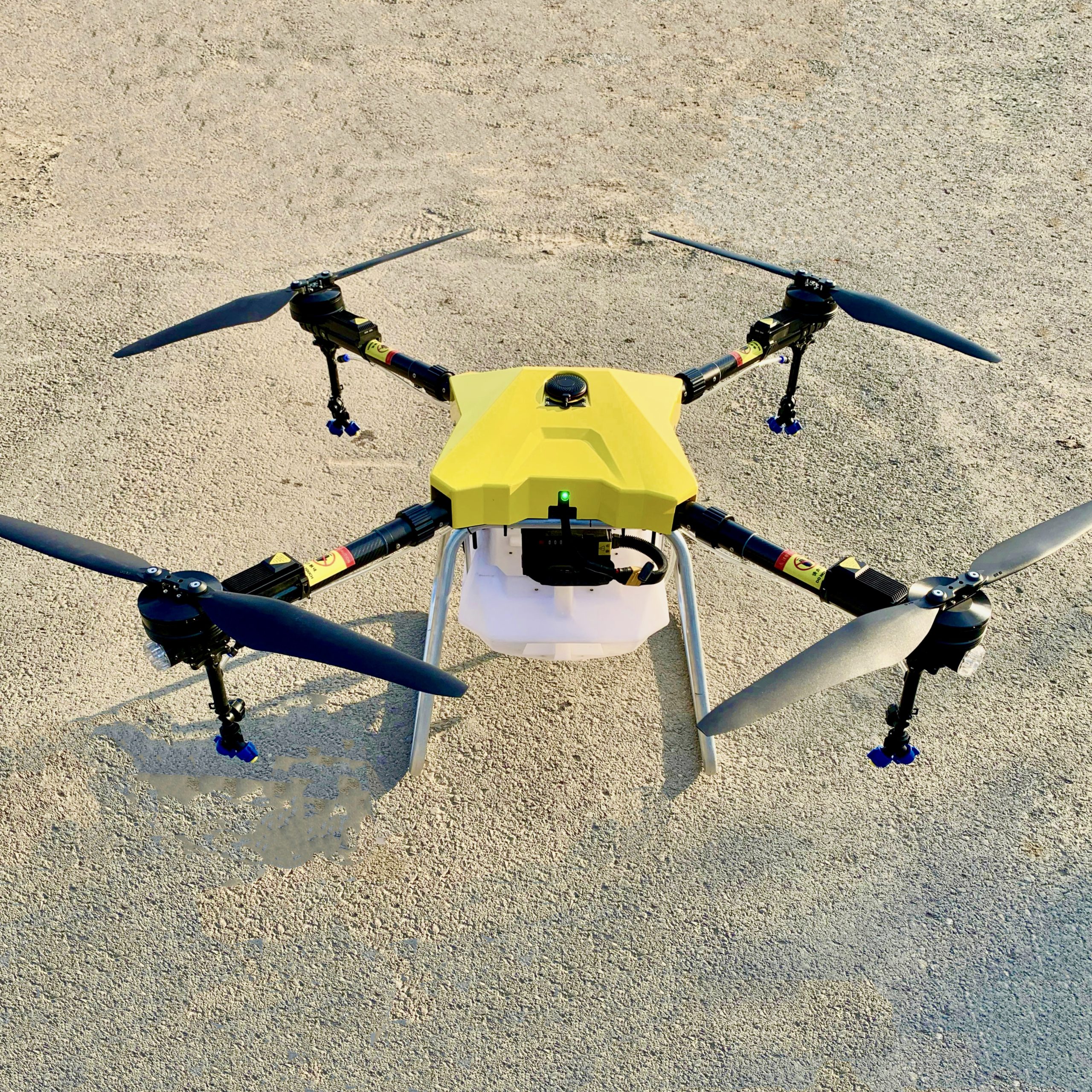

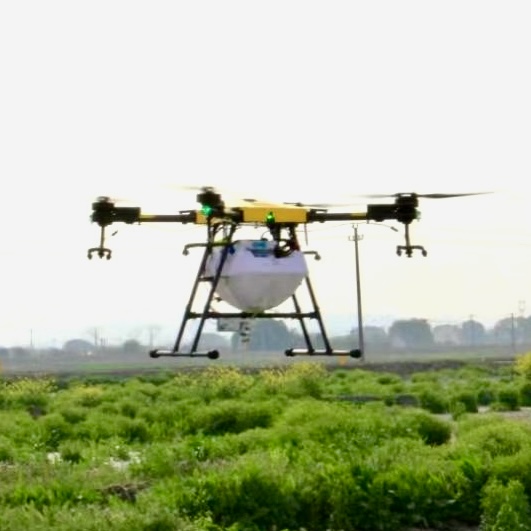

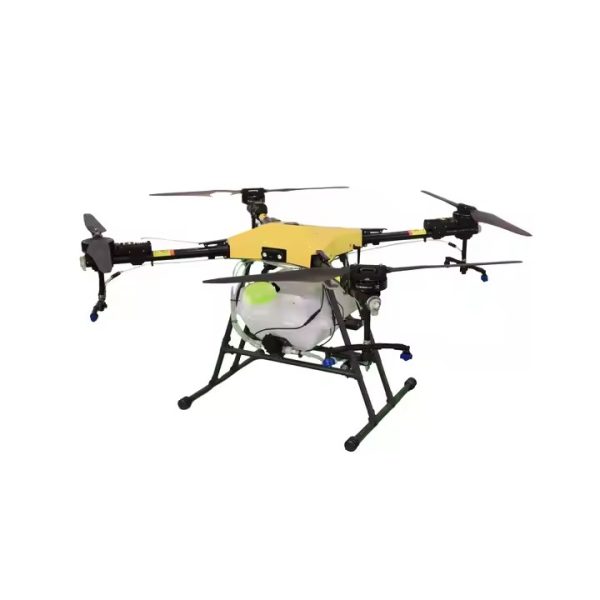

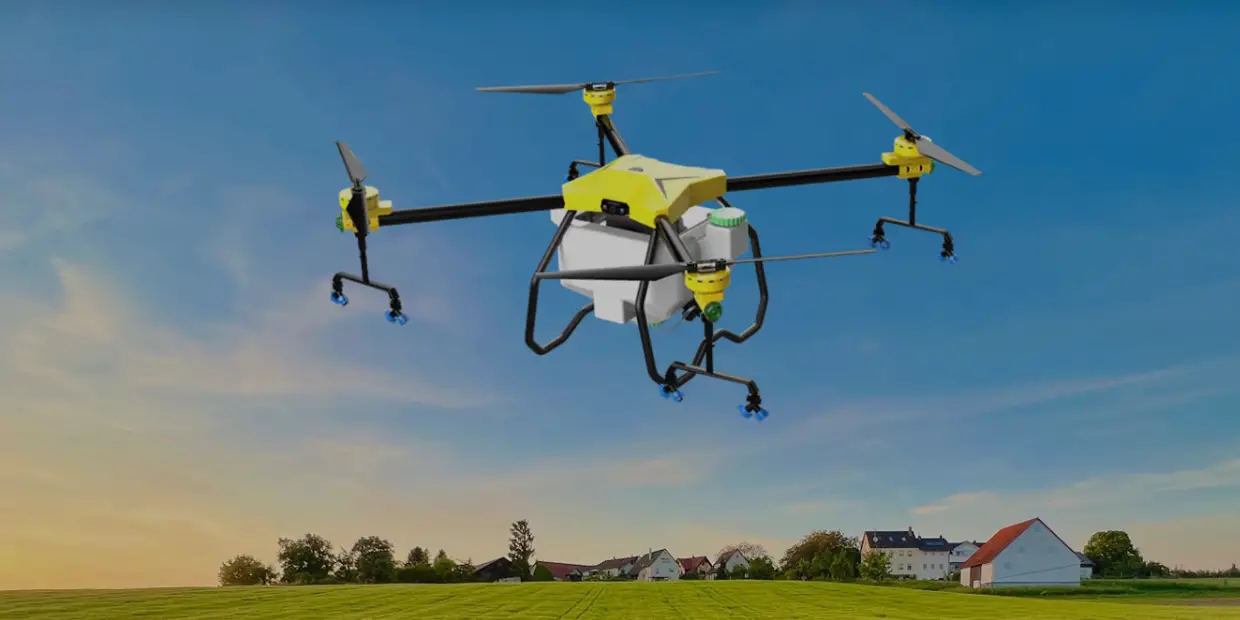

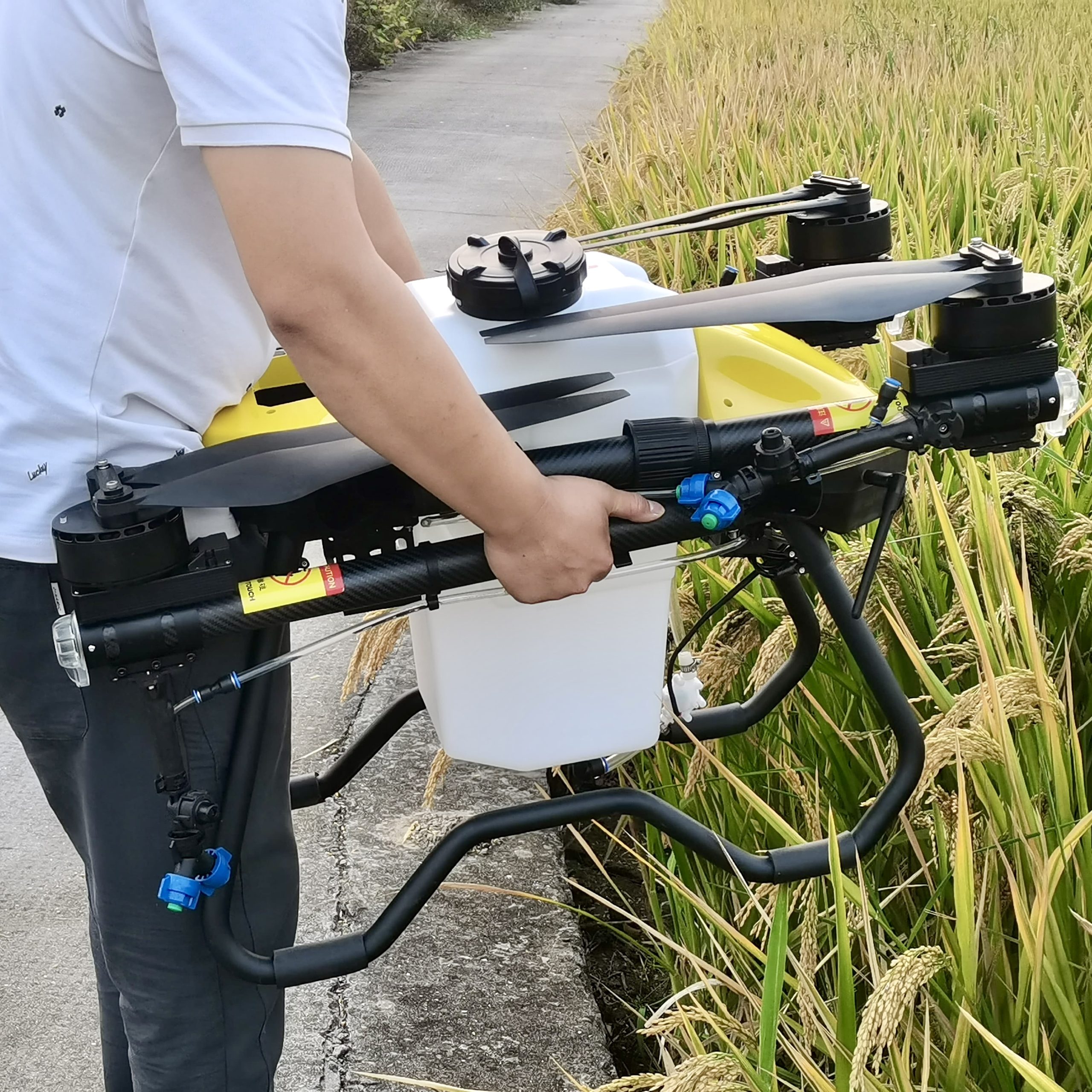

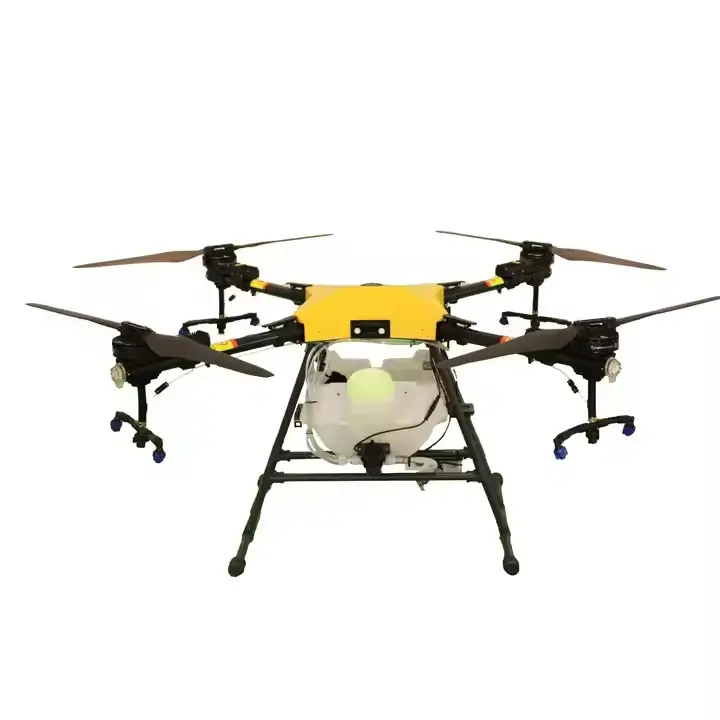

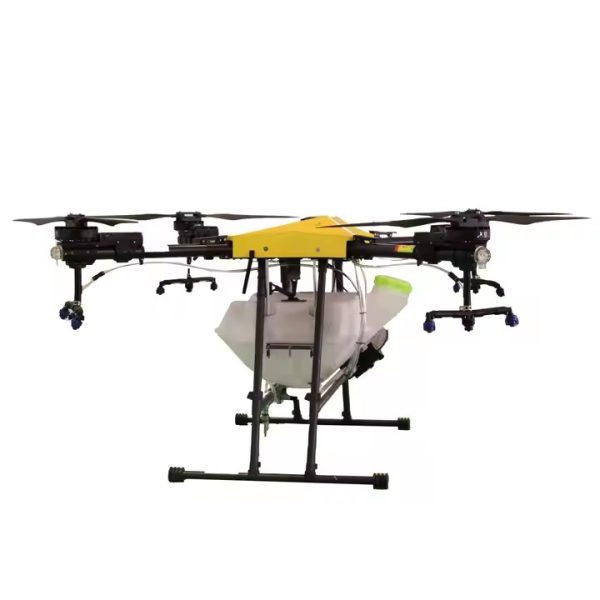

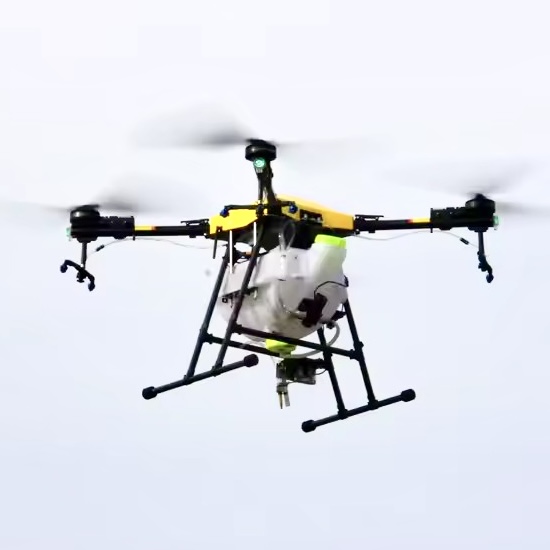

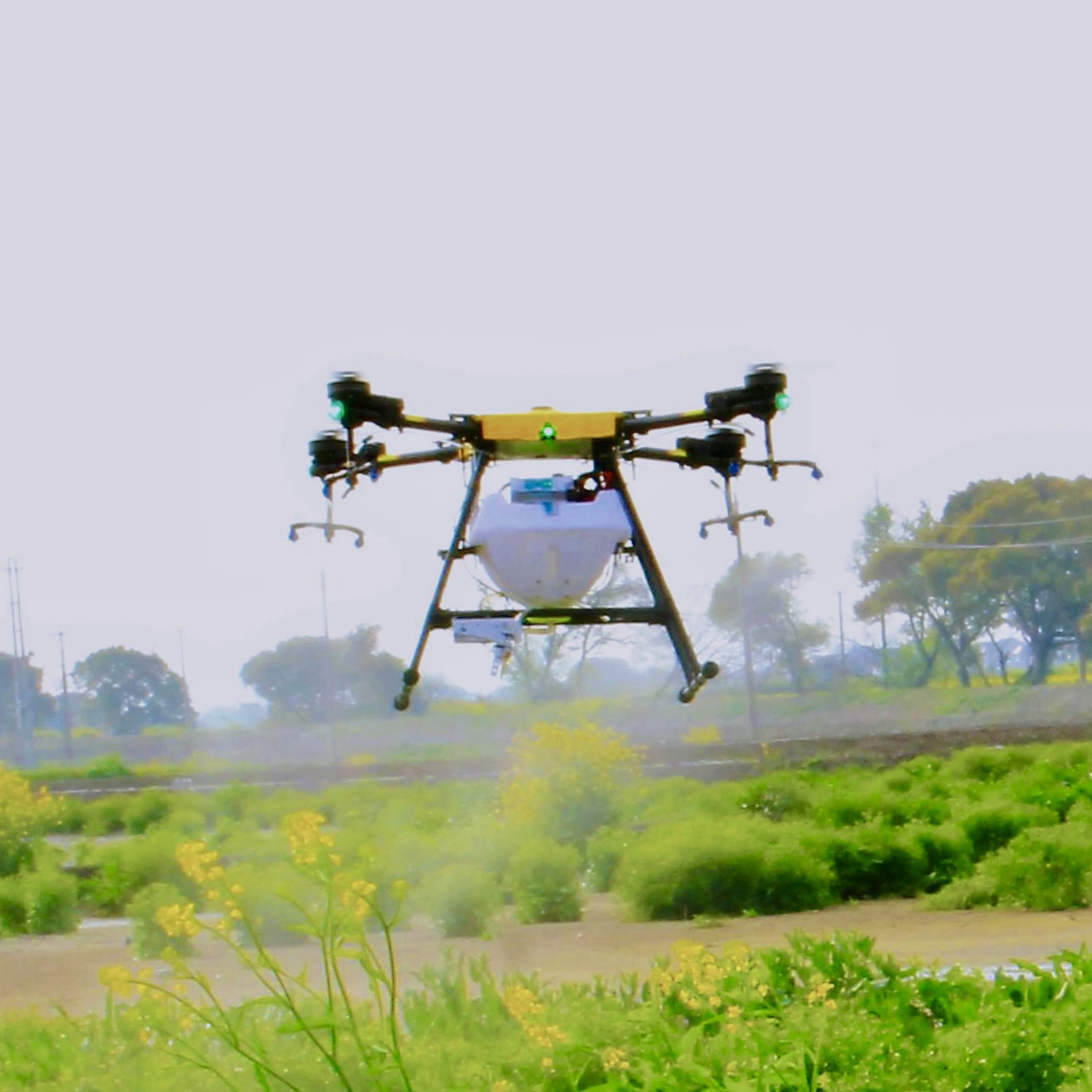

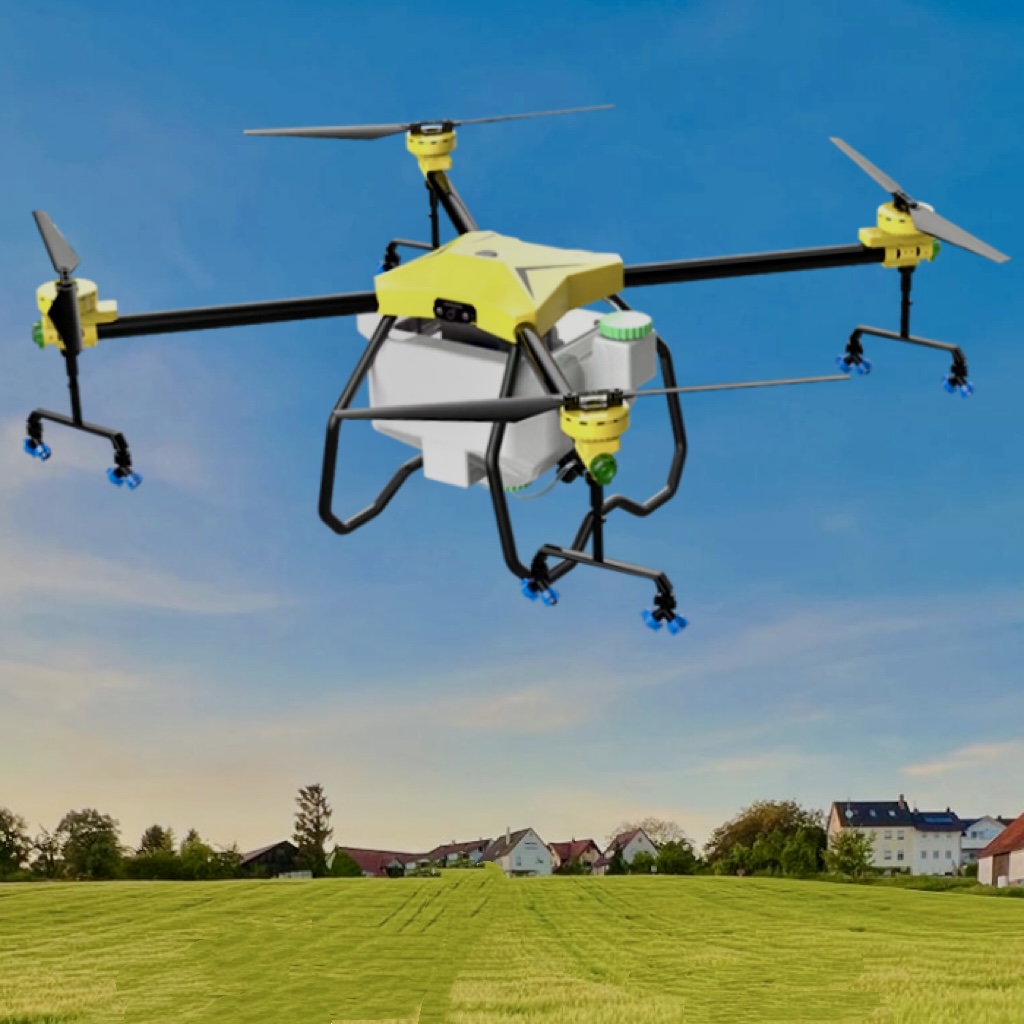

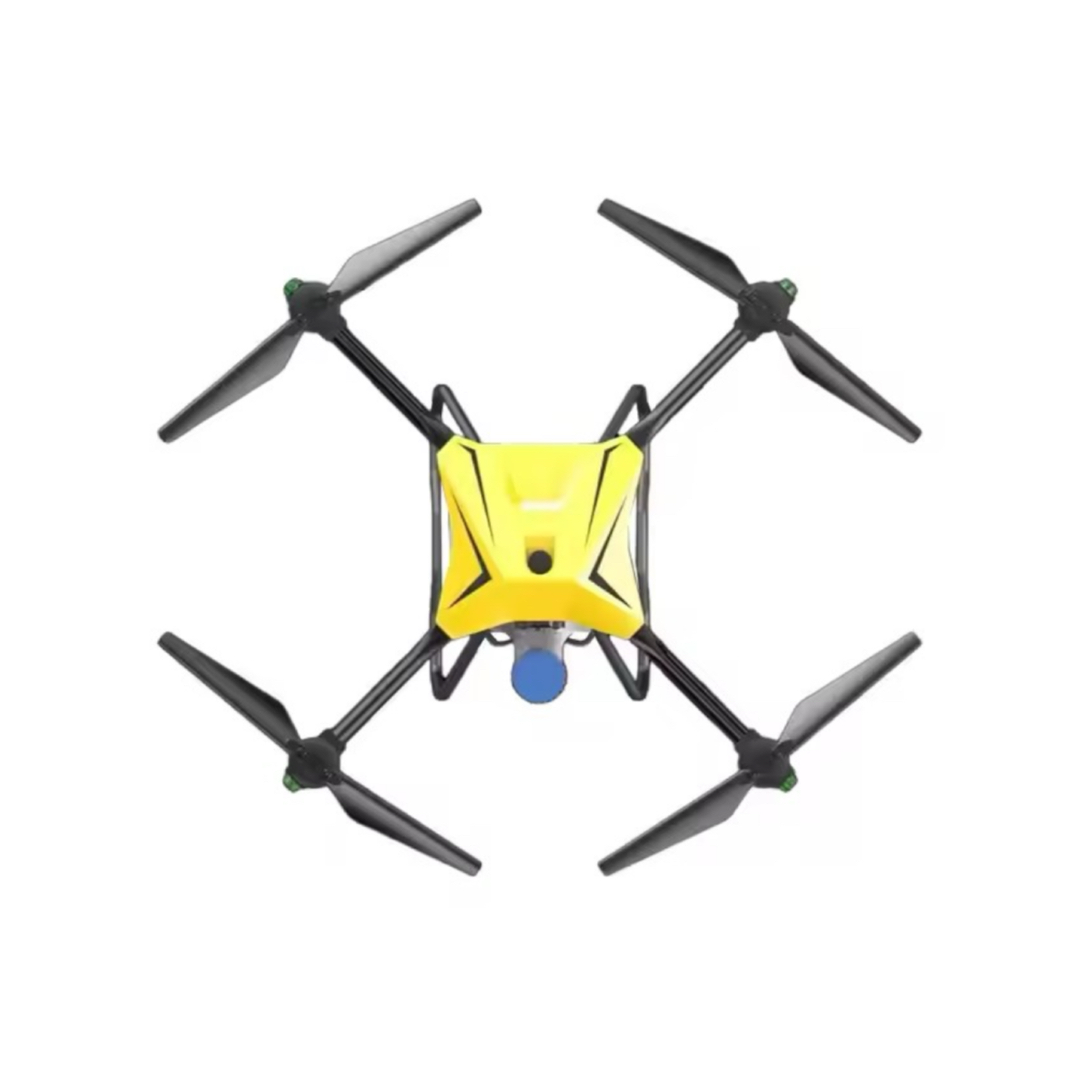

S60 30L (7.93 gal) Agricultural Drone
S60 Agricultural Drone features a 30L capacity and versatile functionality to meet diverse farming needs. It offers high-pressure spraying for deep penetration, ensuring effective pest and disease control. In addition to pesticide spraying, it supports seeding and fertilizing, making it a multifunctional solution for modern agriculture. With user-friendly operation and automatic obstacle avoidance, the S60 provides a reliable and efficient tool for enhancing productivity.
| Specification | Details | ||
| Model Number | S60 30L (7.93 gal) Agricultural Drone | Weight Excluding Battery | 21 kg (46.3 lb) |
| Structural Design | 4-Axis Foldable | Max. Take-off Weight | 59.6 kg (131.4 lb) |

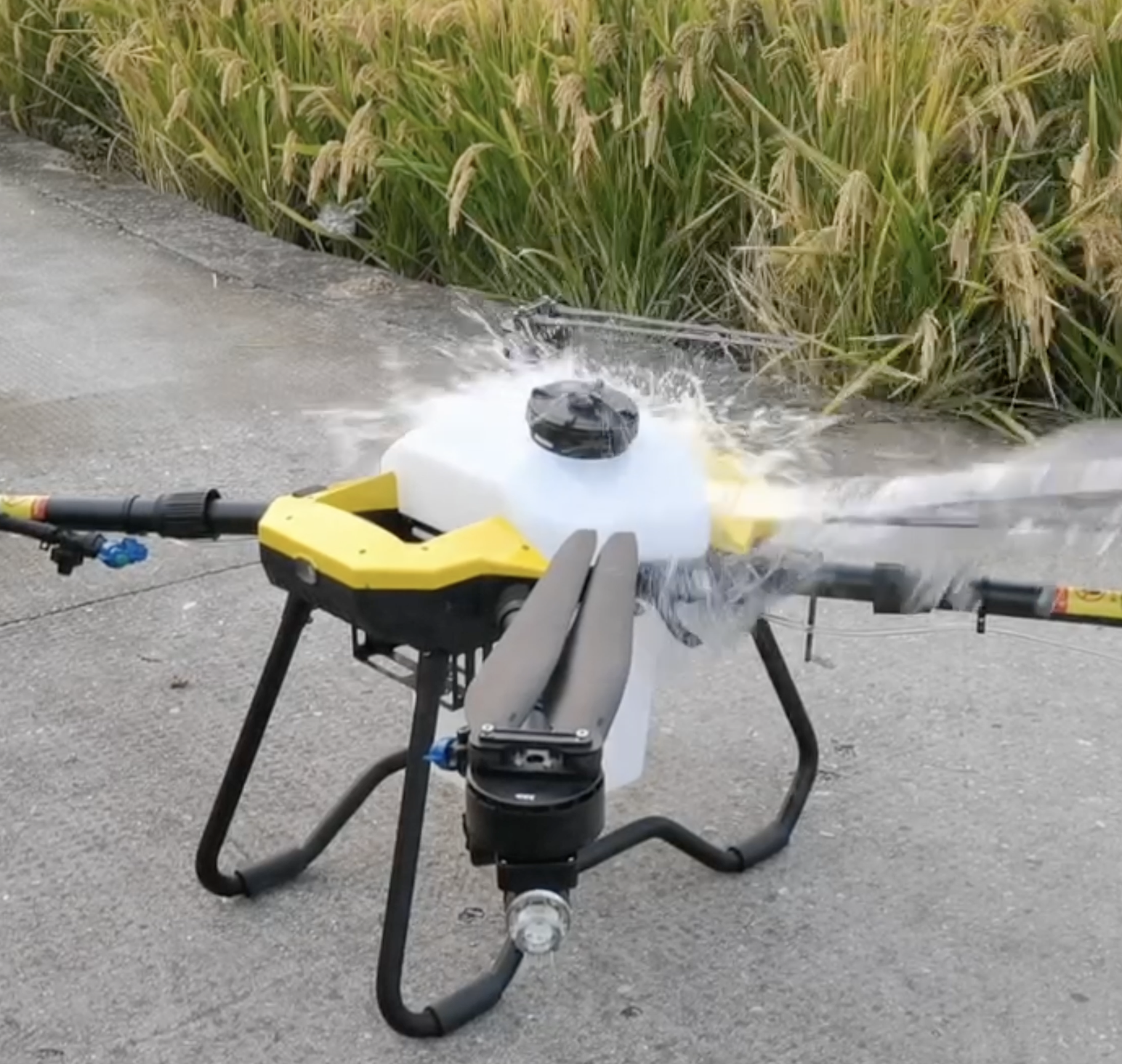

| Waterproof Grade | IP67 | Max. Flight Speed | 15 m/s |
| Max. Flight Altitude | ≤20 m | Tank Capacity | 30 L (7.93 Gallon) |
| Aircraft Engine Lifespan | ≥ 100,000 hours | Max. Flight Radium | 5 km |
| Aircraft Frame Lifespan | ≥ 10 years | Spray Width | 4-12 m |
| Battery | 14S 20000mAh Intelligent Battery | Nozzle Type | High-pressure Nozzles |

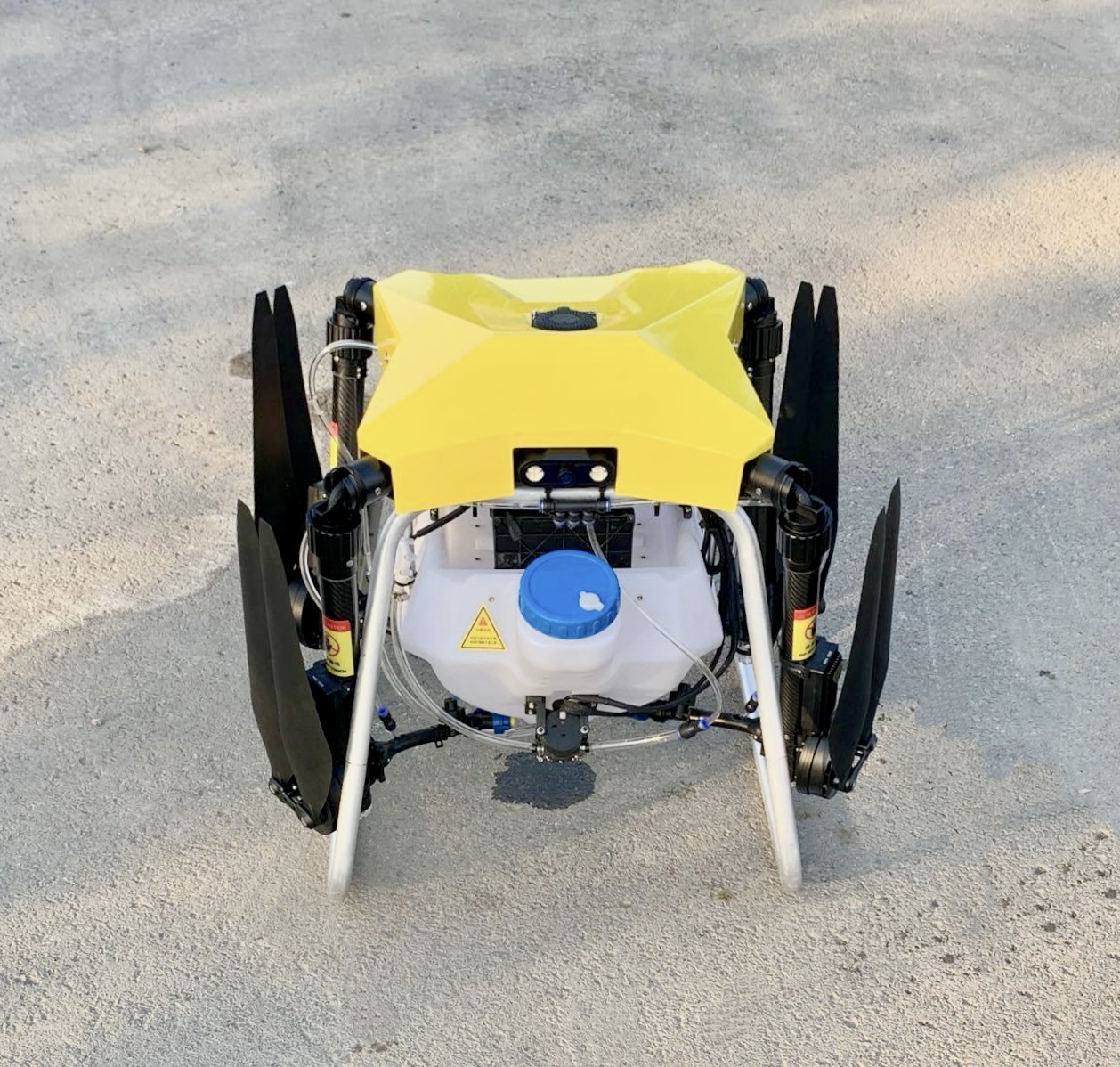

| Dimensions (Folded) | 830 x 830 x 800 mm | Flight Mode | Auto / AB Point / Manual |
| Dimensions (Unfolded) | 2150 x 2150 x 800 mm | Max. System Flow Rate | 8 L/min |
| Material | Carbon fiber + 7075 aviation aluminum | Working Efficiency | 20 Hectare/h |
Spraying & Spreading Dual System

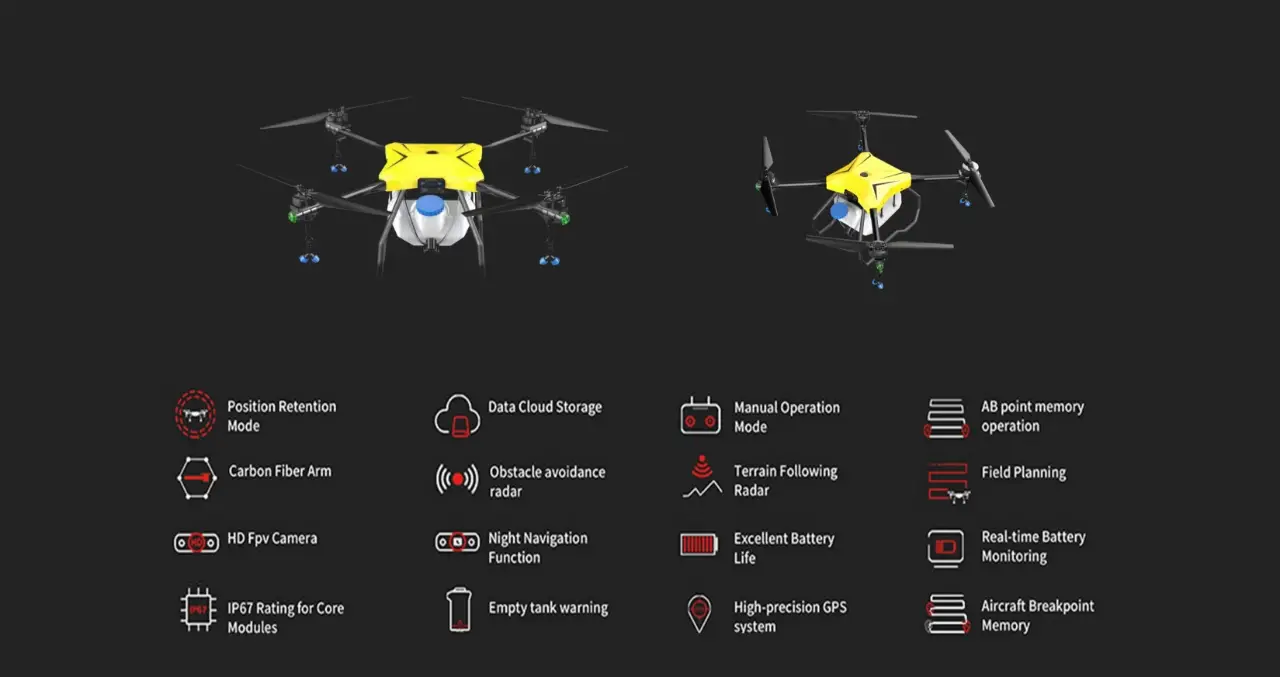

Highly Integrated Intelligent Flight Control System
Terrain Following Radar allows for adaptive flight in varied landscapes, maintaining a consistent altitude, and enhancing safety and precision.
Automatic Operation System

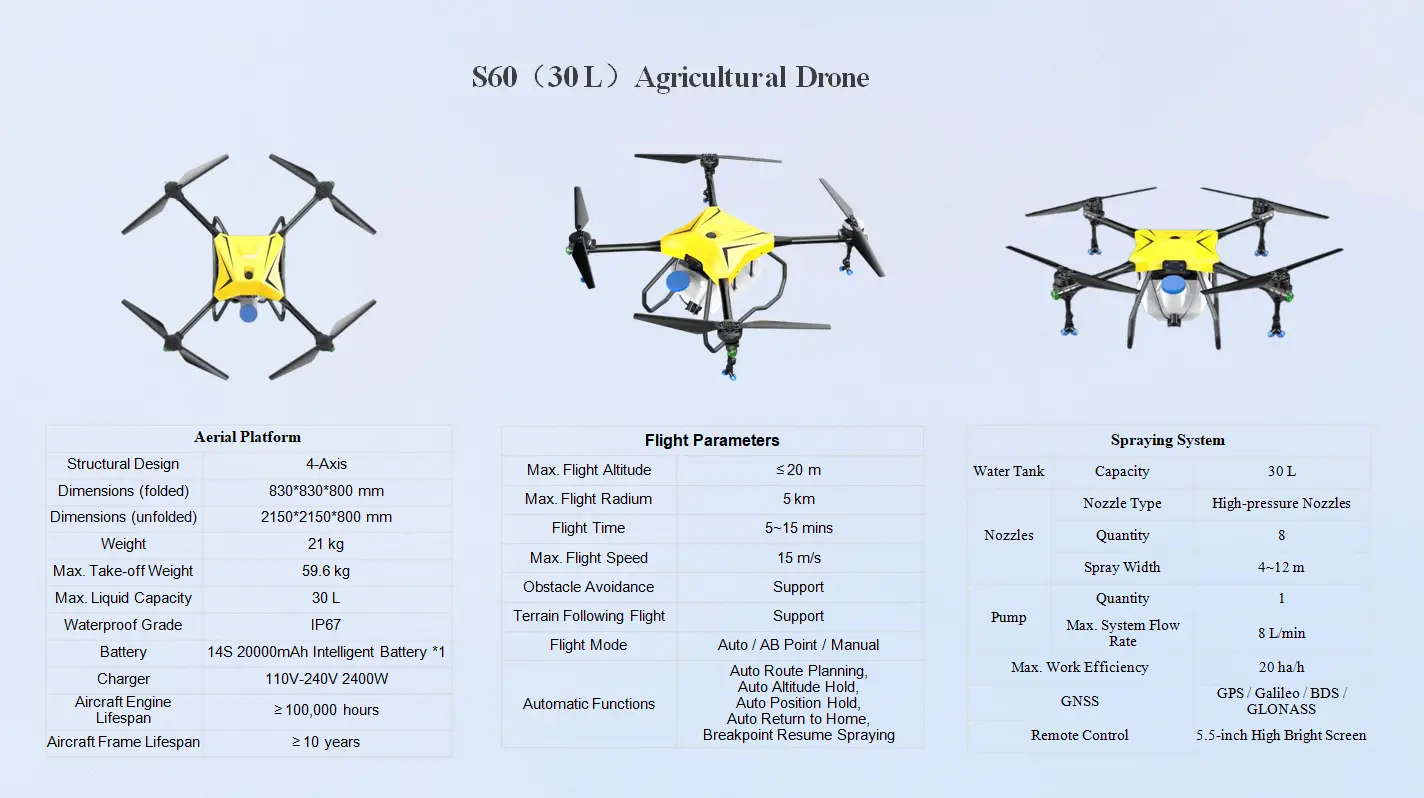

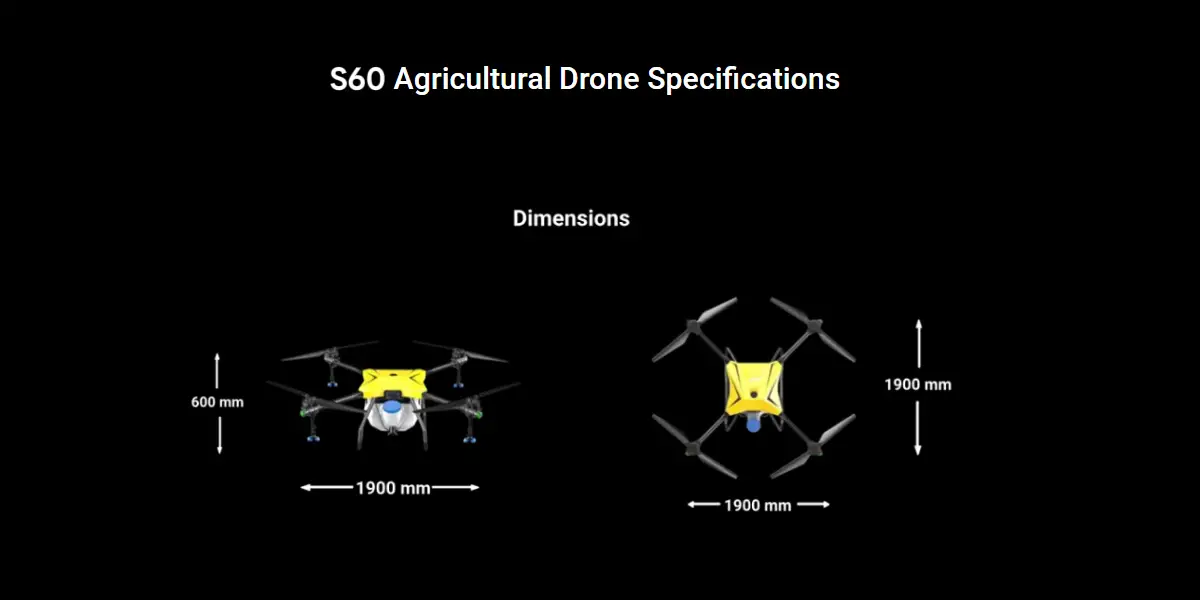

S60 30L (7.93 gal) Specifications
Three operating modes: Fully automatic, AB point, and Manual.
Universal Applications
Easy Field Planning: Plot Mode
Easy Field Planning: Sweep Mode
Standard Configuration

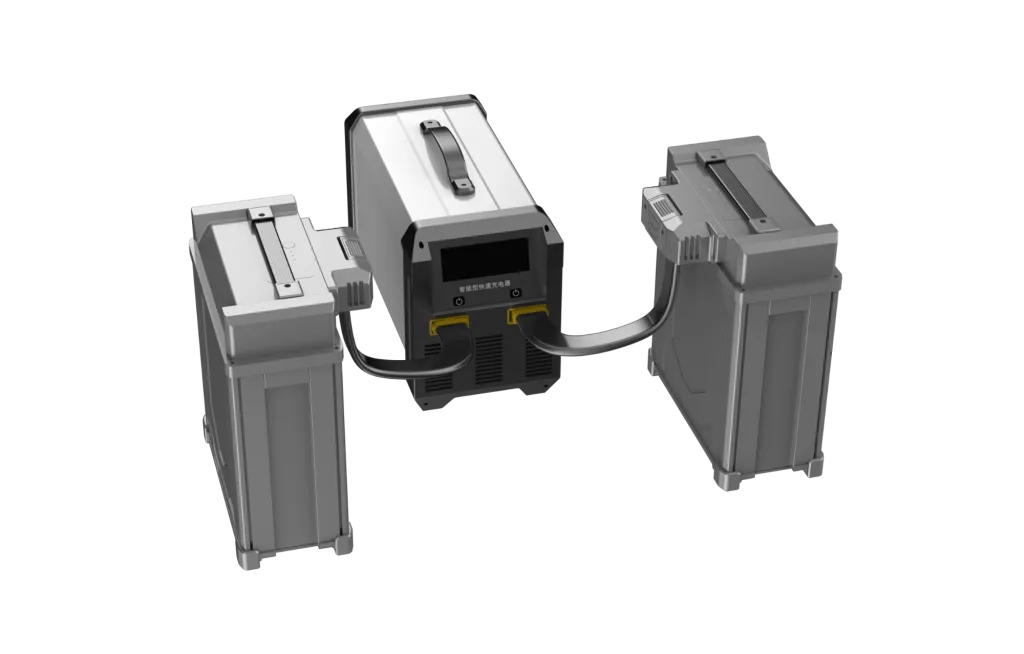

14S 28000mAh Lithium-polymer Intelligent battery x2
3000w intelligent charger x1
- Equipped with 14S 28000 mAh intelligent batteries and a rapid intelligent charger
- Optimized for quick charging and continuous operation.
- Ultra-fast charging capability

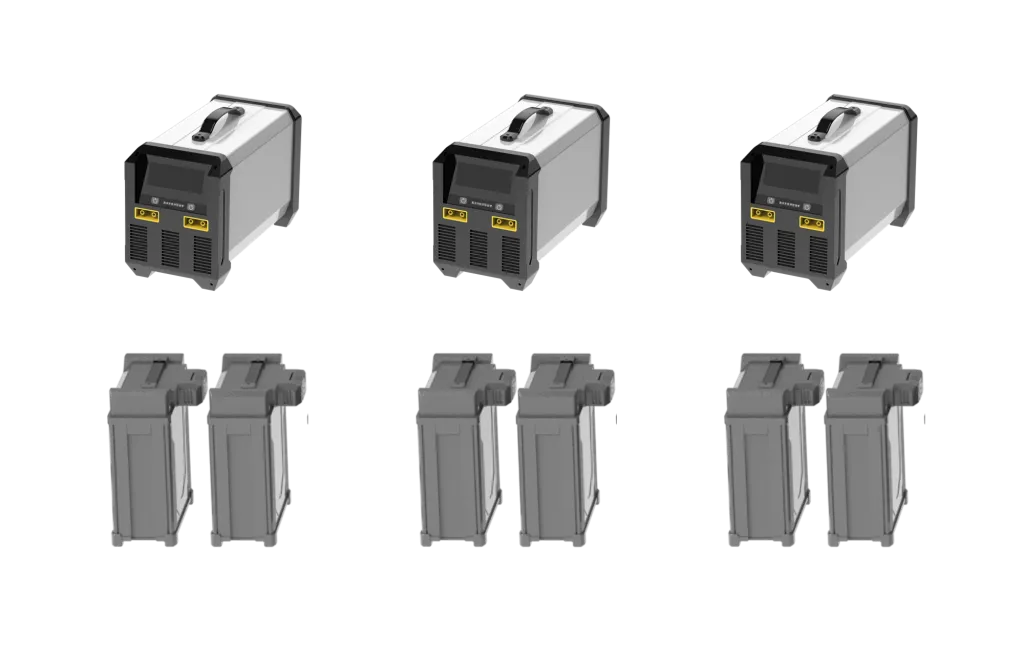

For Continuous Operation
14S 28000mAh Lithium-polymer Intelligent battery x6
3000w intelligent charger x3
- Unlimited charging
- Anti-collision, shockproof, anti-penetration, and over-temperature protection
- Automatic internal balancing of battery voltage for optimal performance

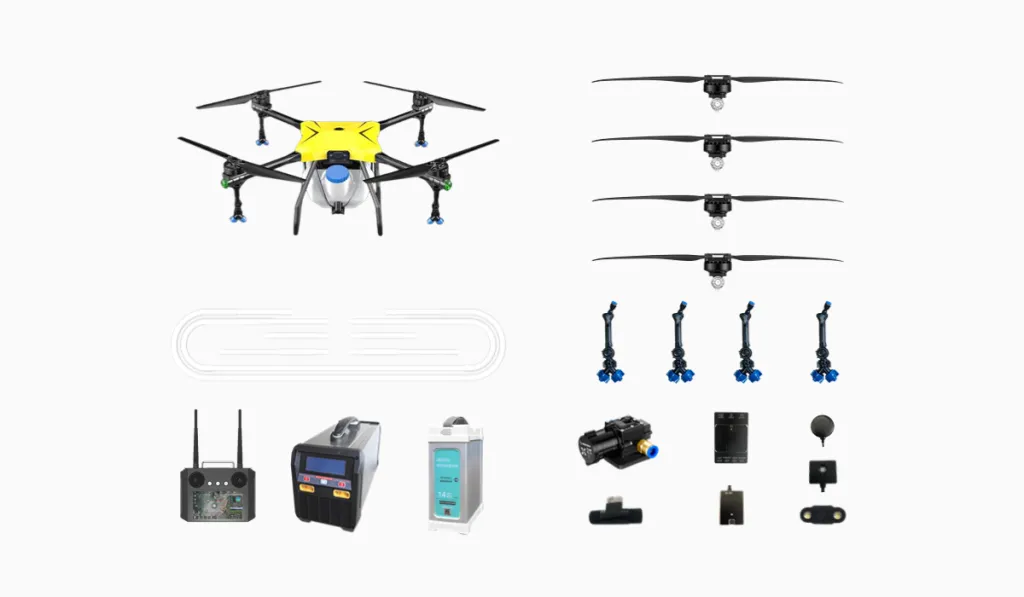

Standard Kit
Frame x1
Propulsion Motor x4
Spray Nozzles x4
Water Pump x1
Flow meter x1
Flight control x1
Power Module x1
GNSS (GPS/Beidou/Glonass) x1
Status Indicator Light x1
FPV camera x1
Night Navigation Light x1
Remote Control x1
Intelligent Battery x1
Intelligent Charger x1

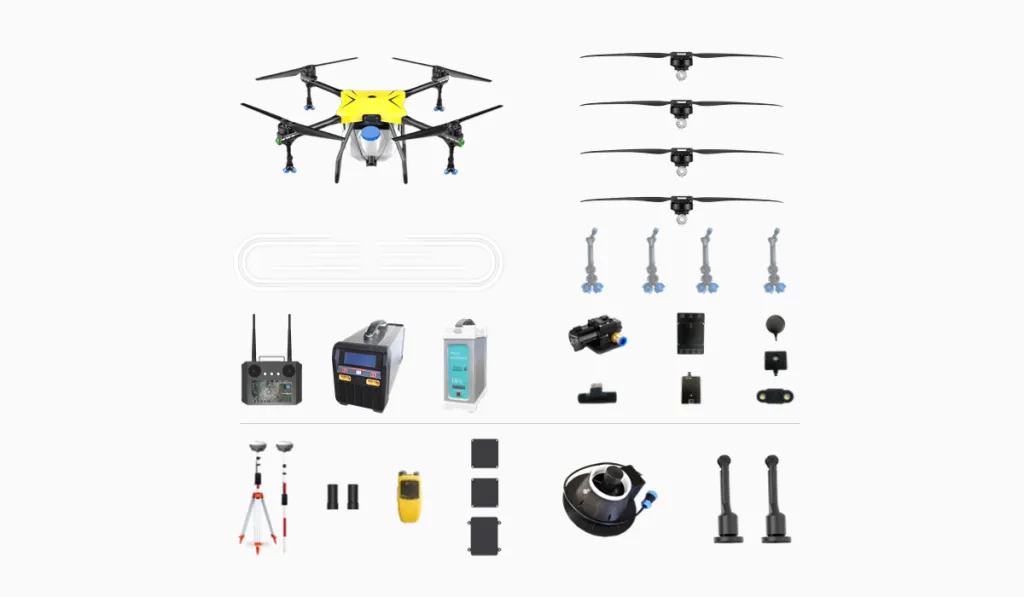

Advanced Kit
Frame x1
Propulsion Motor x4
Spray Nozzles x4
Water Pump x1
Flow Meter x1
Flight control x1
Power Module x1
Base Station RTK x1
RTK Module x1
Handheld Survey Box x1
Terrain Following Radar x1
GNSS (GPS/Beidou/Glonass) x1
Status Indicator Light x1
FPV camera x1
Night Navigation Light x1
Remote Control x1
Intelligent Battery x1
Intelligent Charger x1
Front Obstacle Avoidance Radar x1
Rear Obstacle Avoidance Radar x1
Centrifugal Nozzles x2
Spreading System x1
