Description

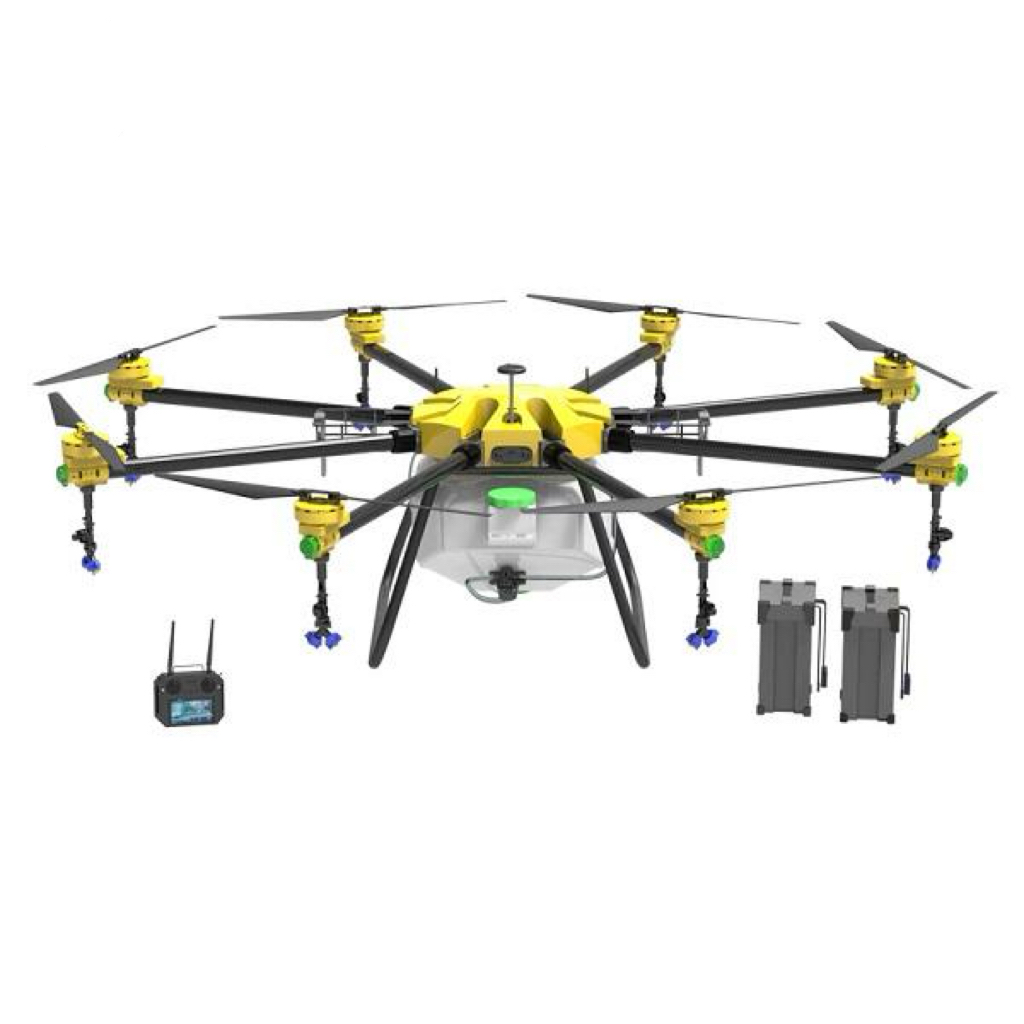

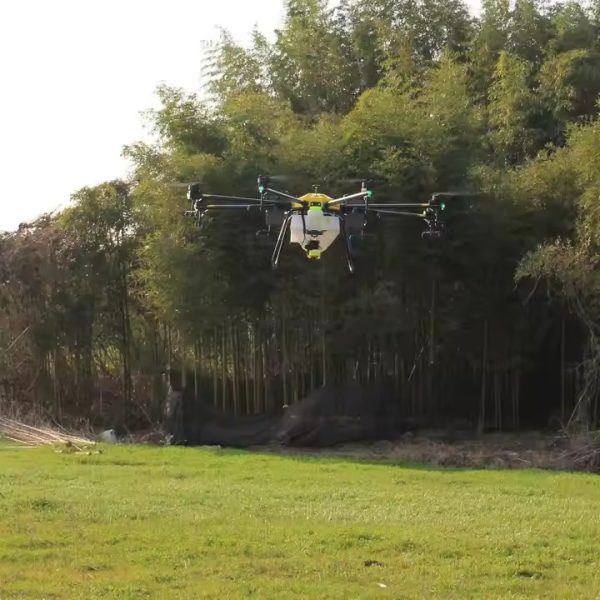

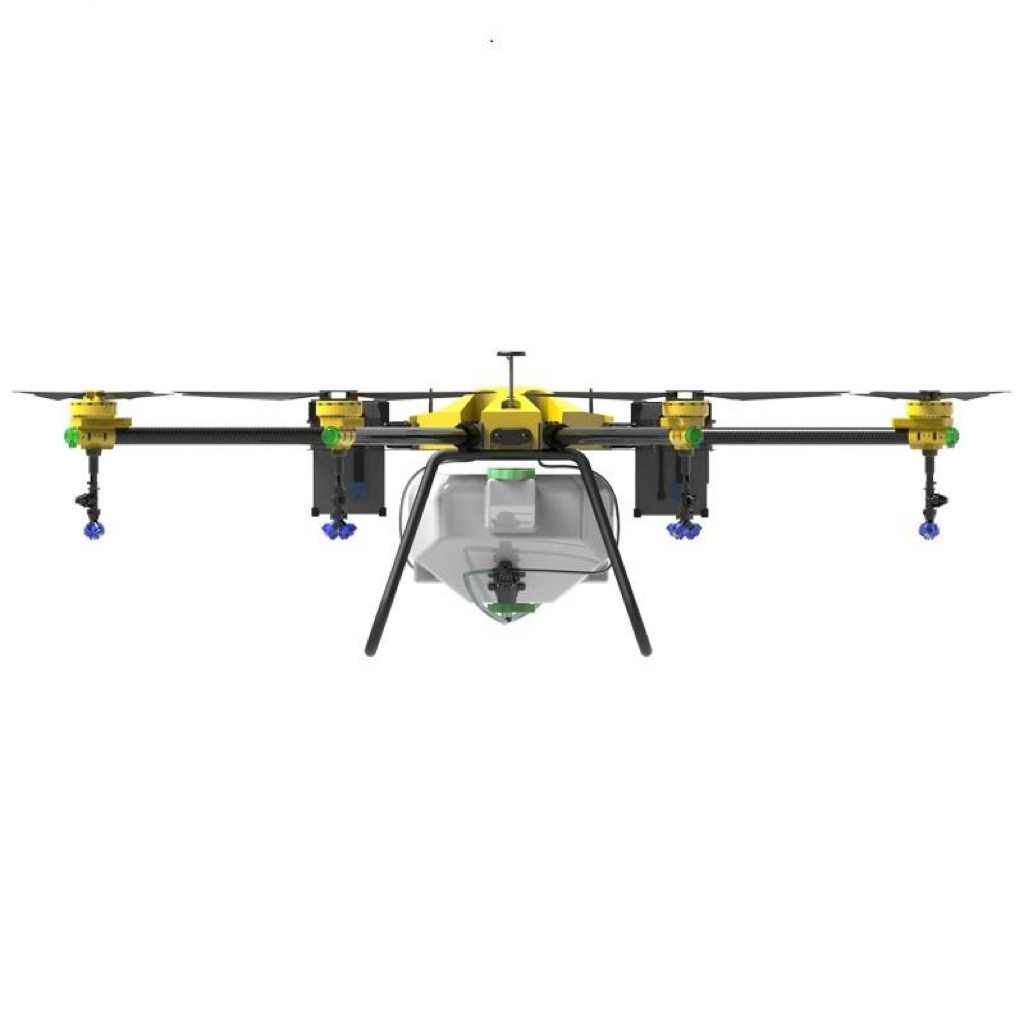

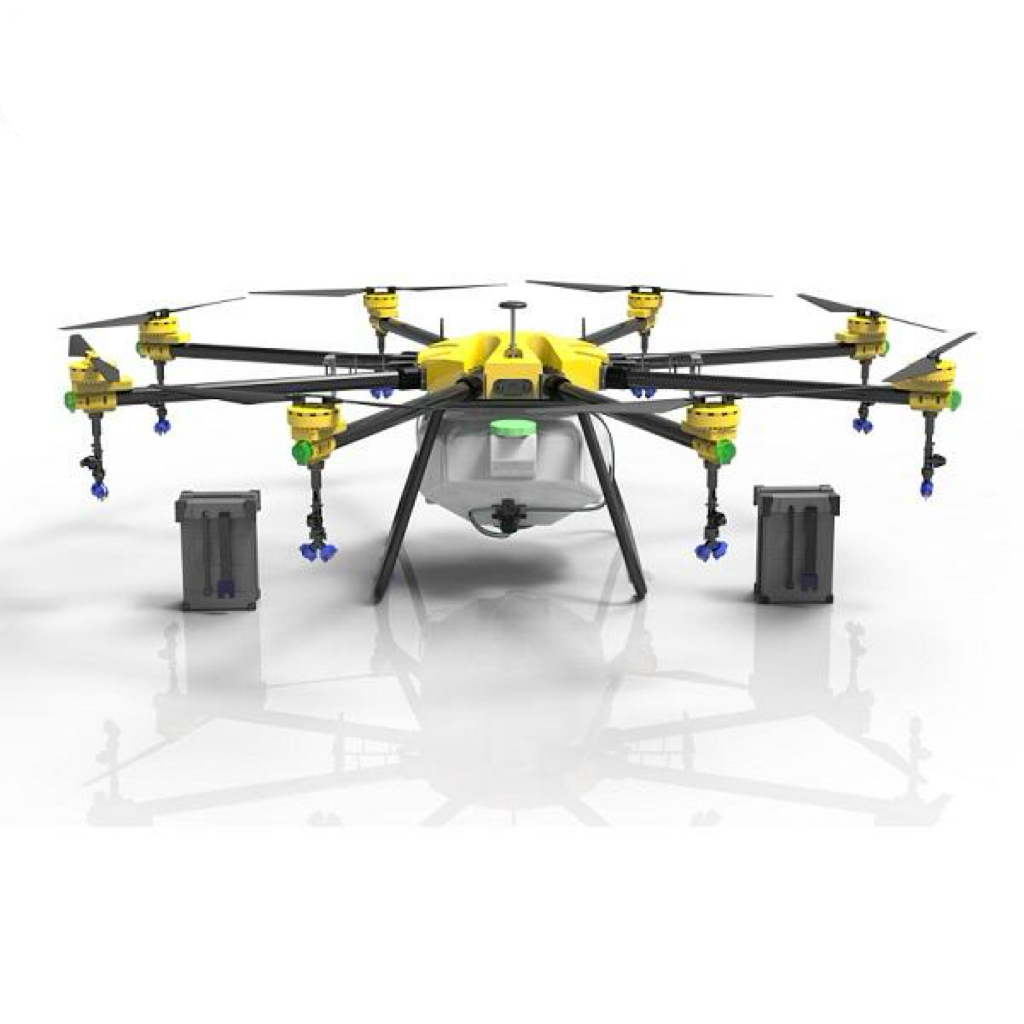

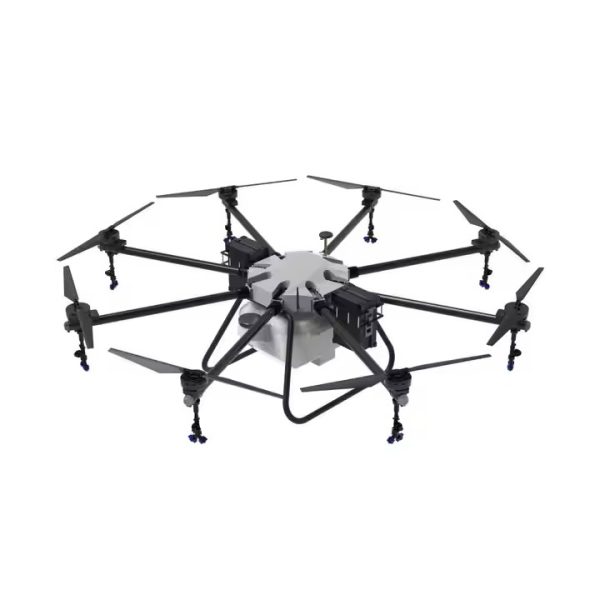

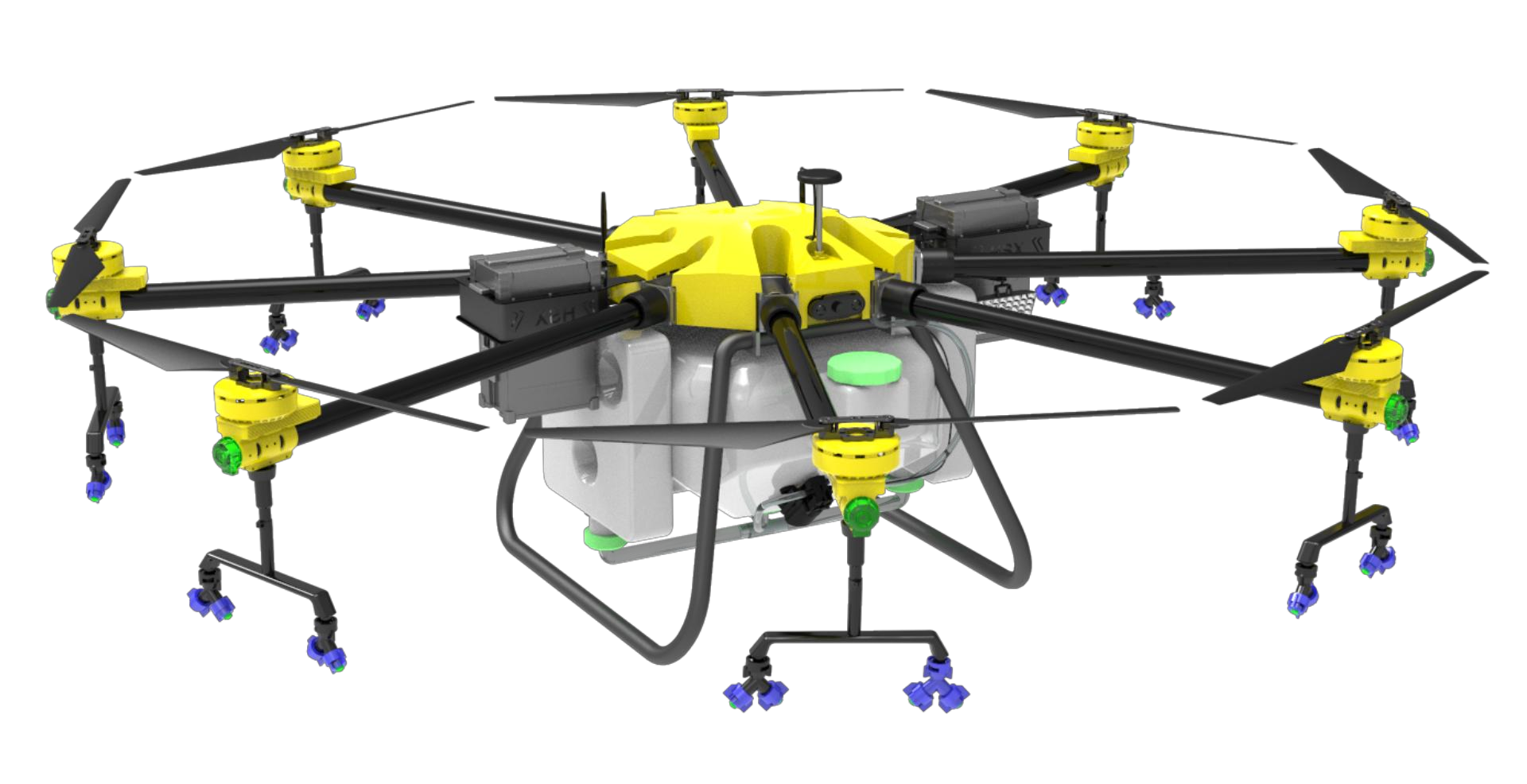

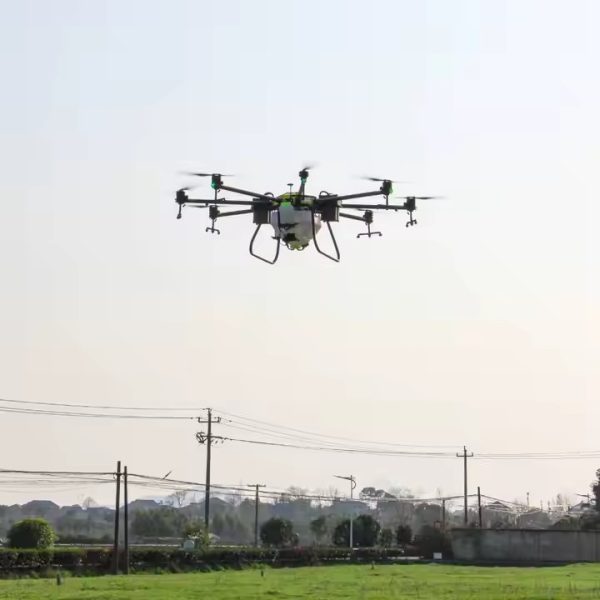

S150 72L (19 gal) Agricultural Drone

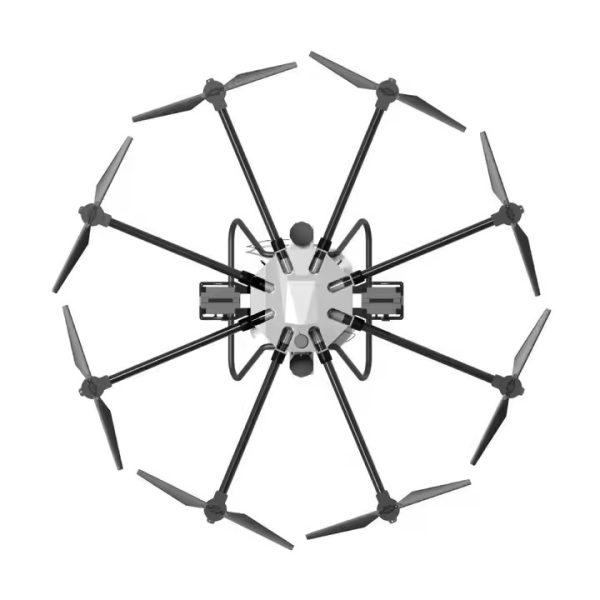

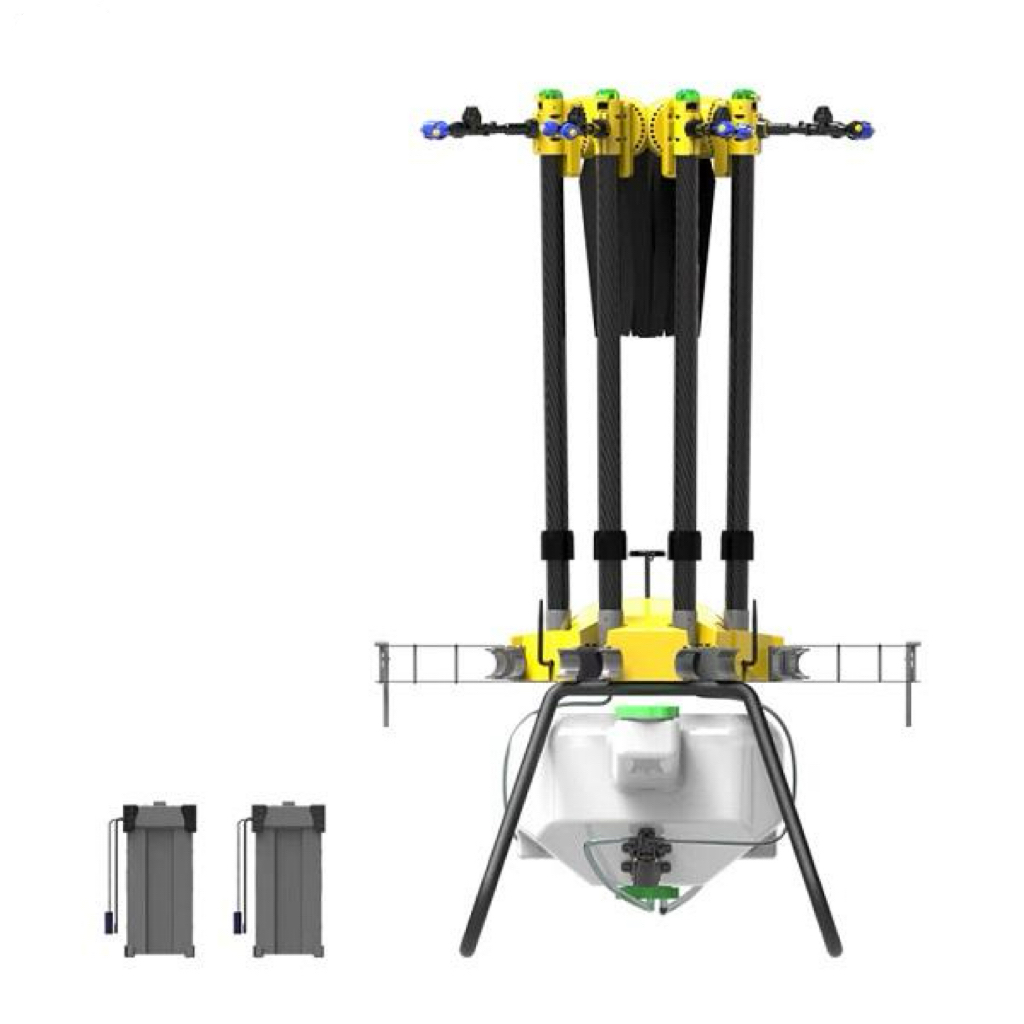

Skytech Model S150 features an innovative 8-axis upward-folding design, maximizing storage and transportation efficiency. With a 72L (19-gallon) liquid spraying capacity and an 80kg (176.37-pound) solid spreading payload, it is perfectly tailored for large-scale agricultural management. Since its debut in 2018, this drone has proven to be exceptionally stable and durable across various global markets, establishing itself as a trusted solution for extensive farming operations.
| Specification | Details | ||
| Model Number | S150 72 L (19 gal) Agricultural Drone | Weight Excluding Battery | 44 kg (97 lb) |
| Structural Design | 8-Axis Foldable | Weight Including Battery | 61 kg (134.48 lb) |
| Waterproof Grade | IP67 | Max. Take-off Weight | 113 kg (249.12 lb) |
| Max. Flight Altitude | ≤20 m | Max. Flight Speed | 15 m/s |
| Hovering Duration | 15 mins with no-load; 5 mins with full-load | Tank Capacity | 52L (13.74 Gallon) |
| Camera Type | HD FPV Camera | Spray Width | 6-16 m |
| Battery | 14S 28000mAh Intelligent Battery | Nozzle Type | High-pressure Nozzles |
| Dimensions (Folded) | 830 x 860 x 1925 mm | Atomizing Size | 30-400 μm |
| Dimensions (Unfolded) | 3050 x 3050 x 910 mm | Max. System Flow Rate | 16 L/min (4.23 gal/min) |
| Material | Carbon fiber + 7075 aviation aluminum | Working Efficiency | 23 Hectare/h (56.83 acre/h) |

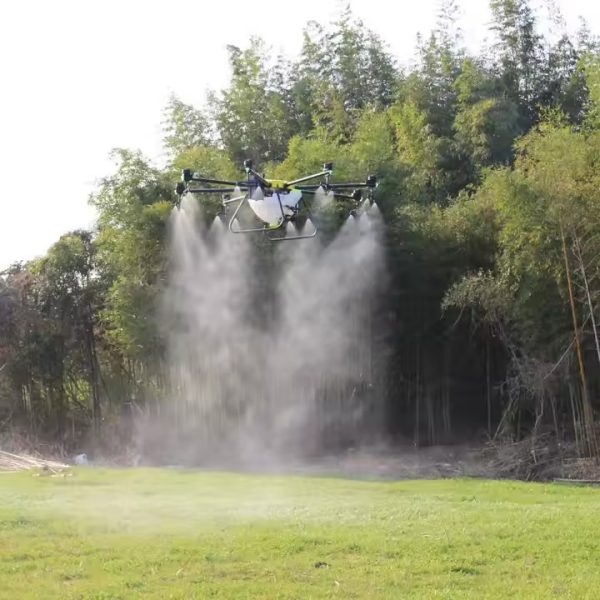

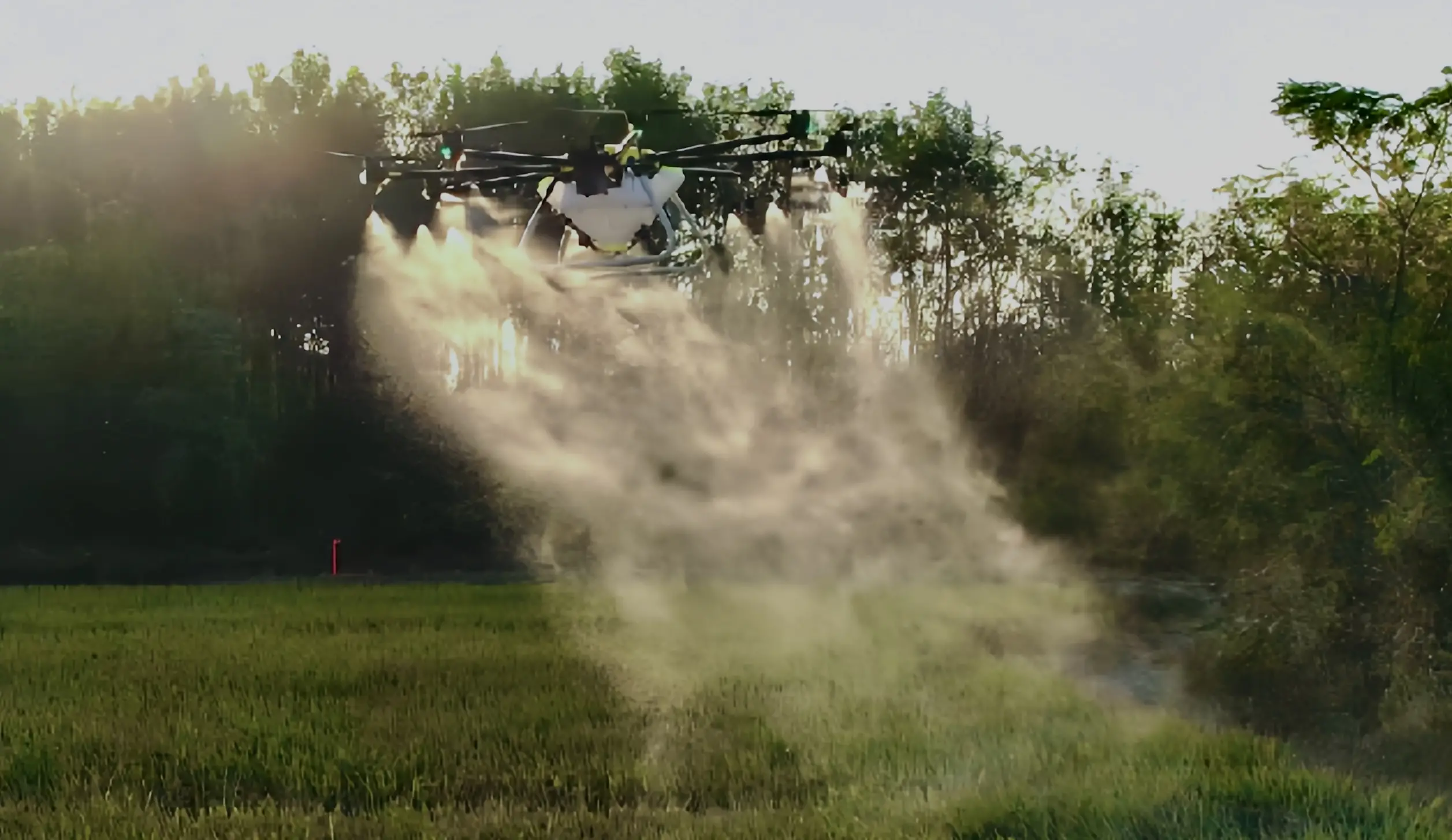

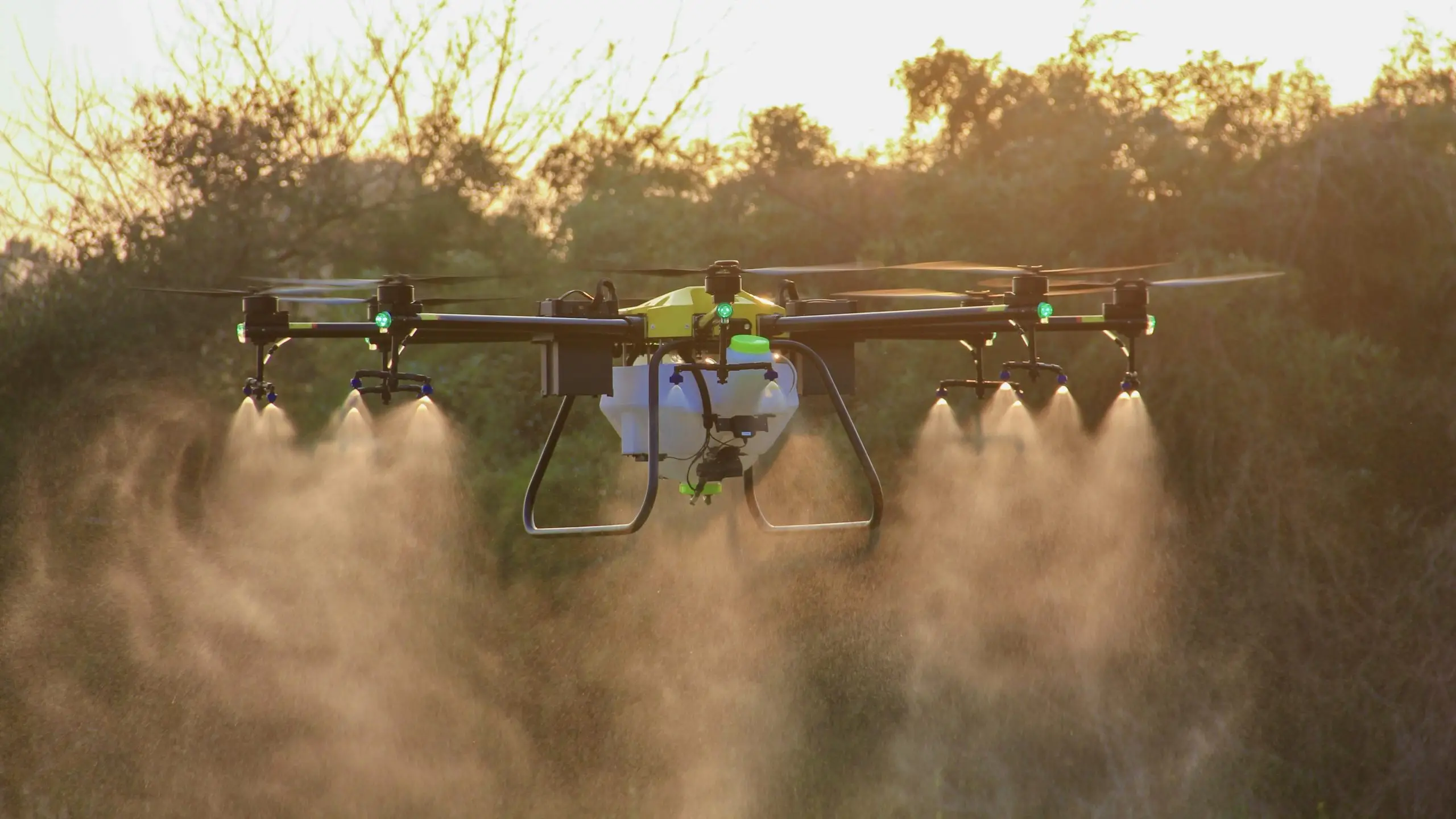

Spraying & Spreading Dual System. 72L (19 gal) liquid spraying and a 80kg (176.37 lb) solid spreading capacity,
Max. Flow Rate 20 L (5.28 gal)/min. Droplet Size Range 60-400 μm Spray Width 8-15 m (26.25 -49.21 ft).
Operate Efficiency 30 Hectare(74 acre)/h

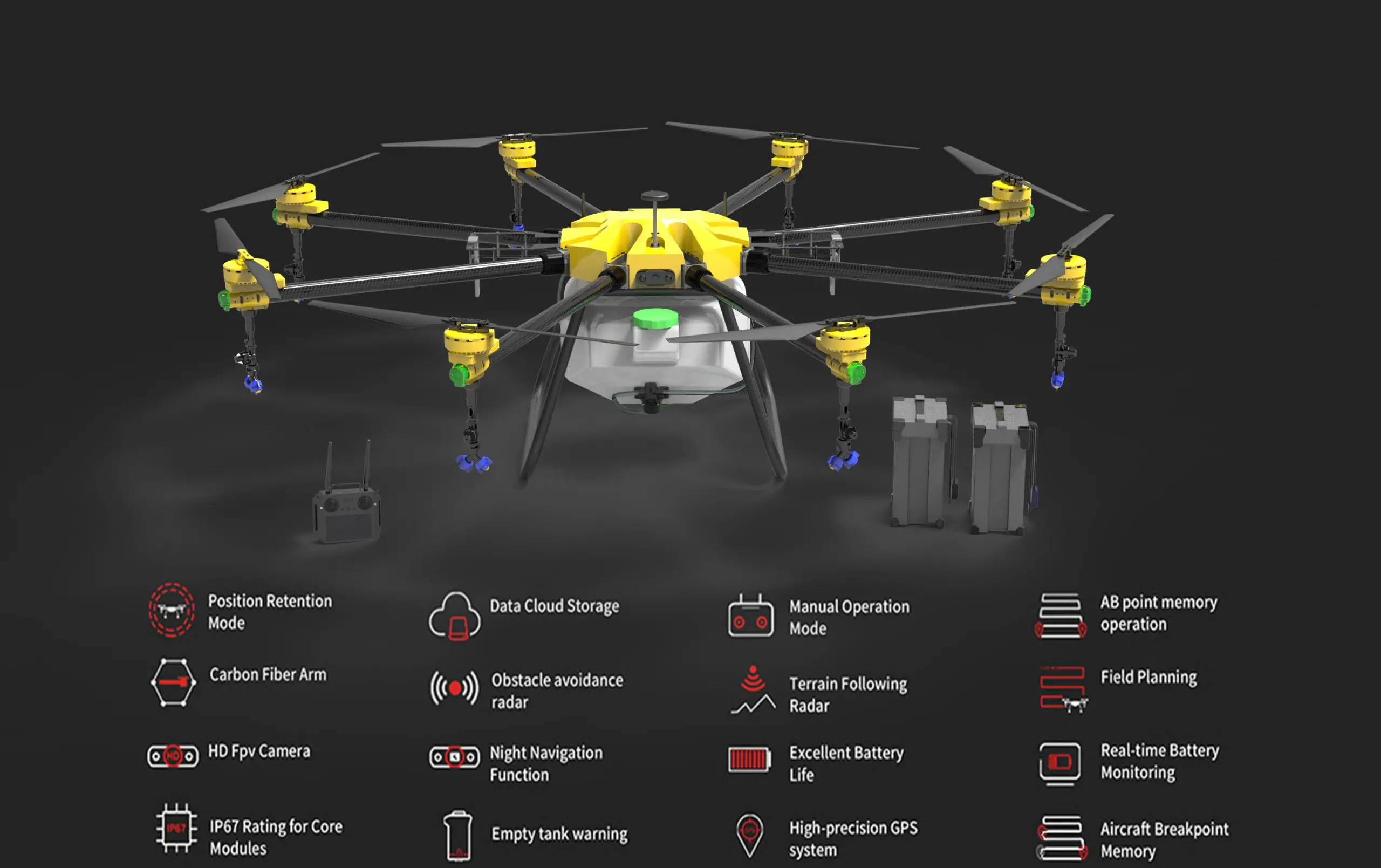

Smart Flight and Intelligent Operation Control
Night Navigation Flight Mode

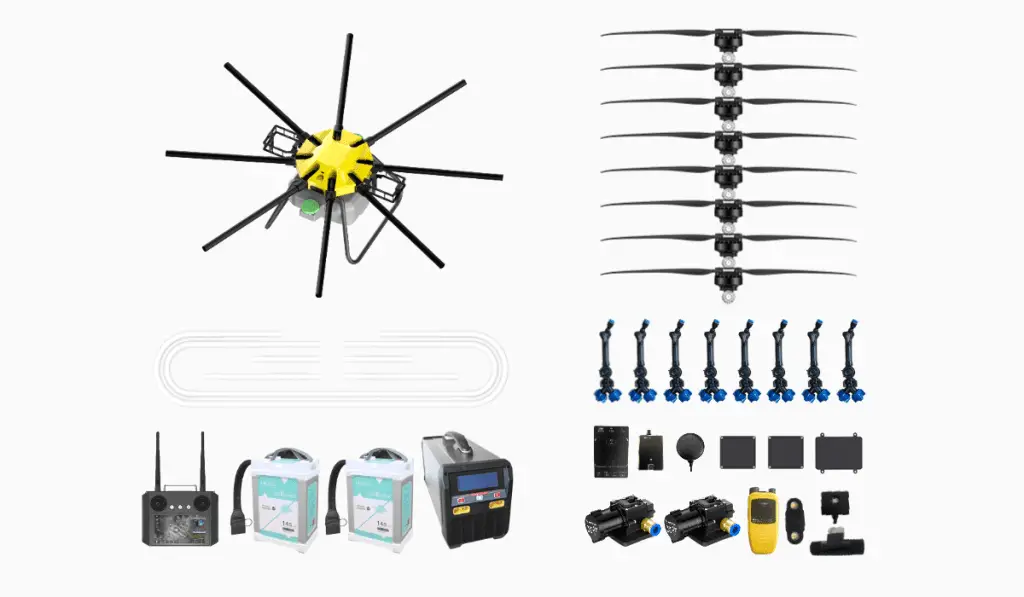

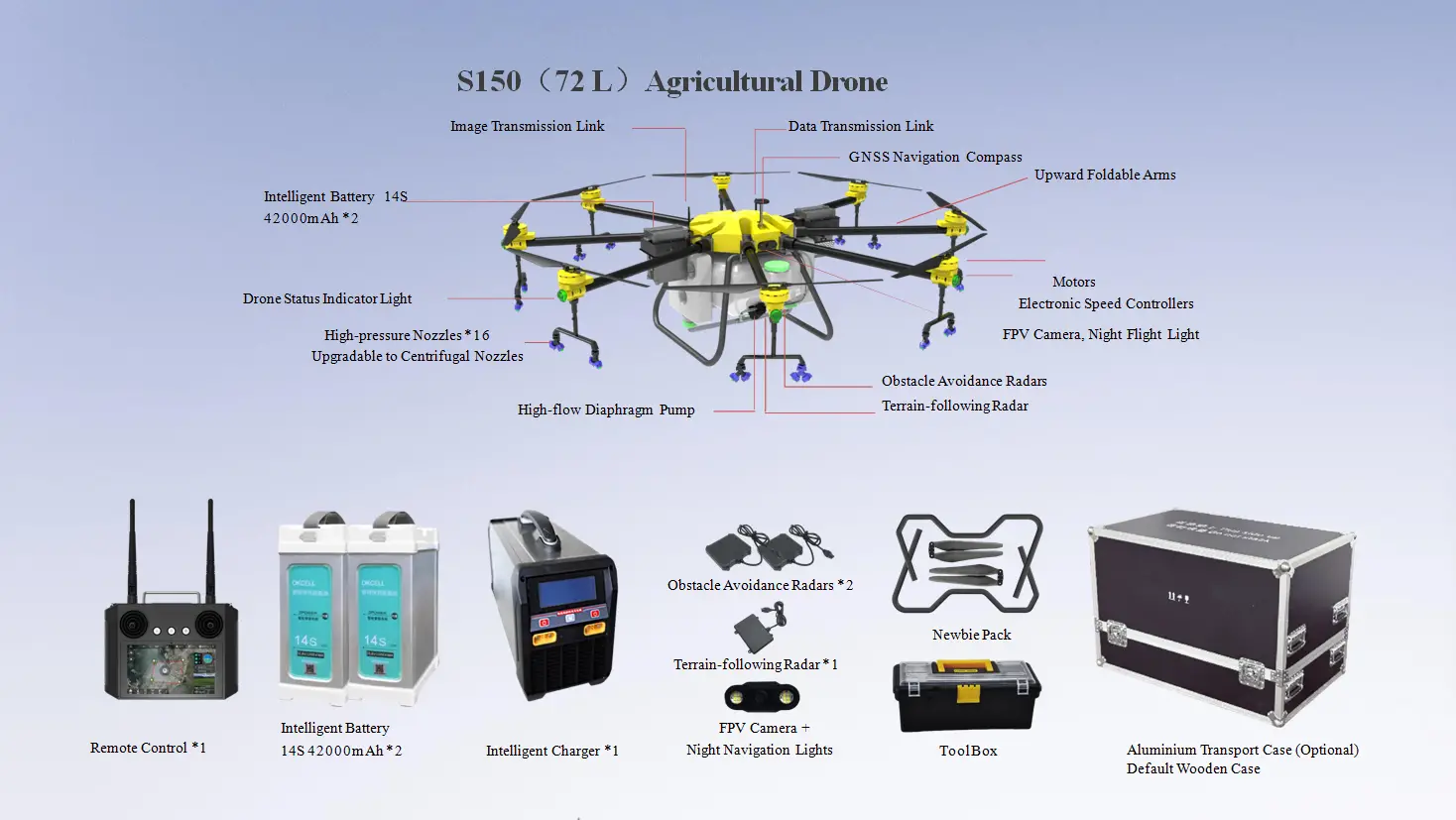

Open Box of S150 72 L (19 gal) Agricultural Drone & Accessories

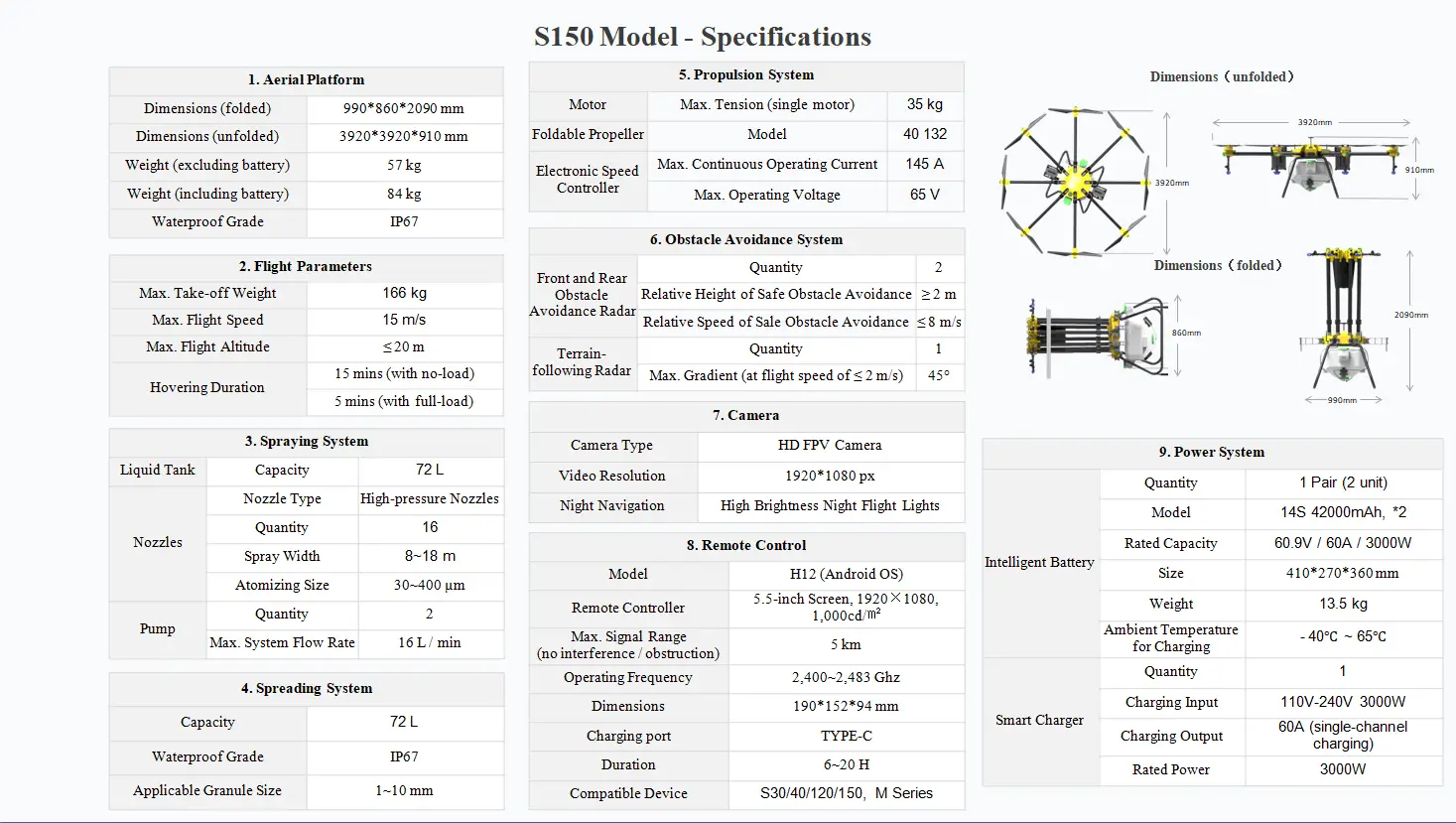

S150 Specifications

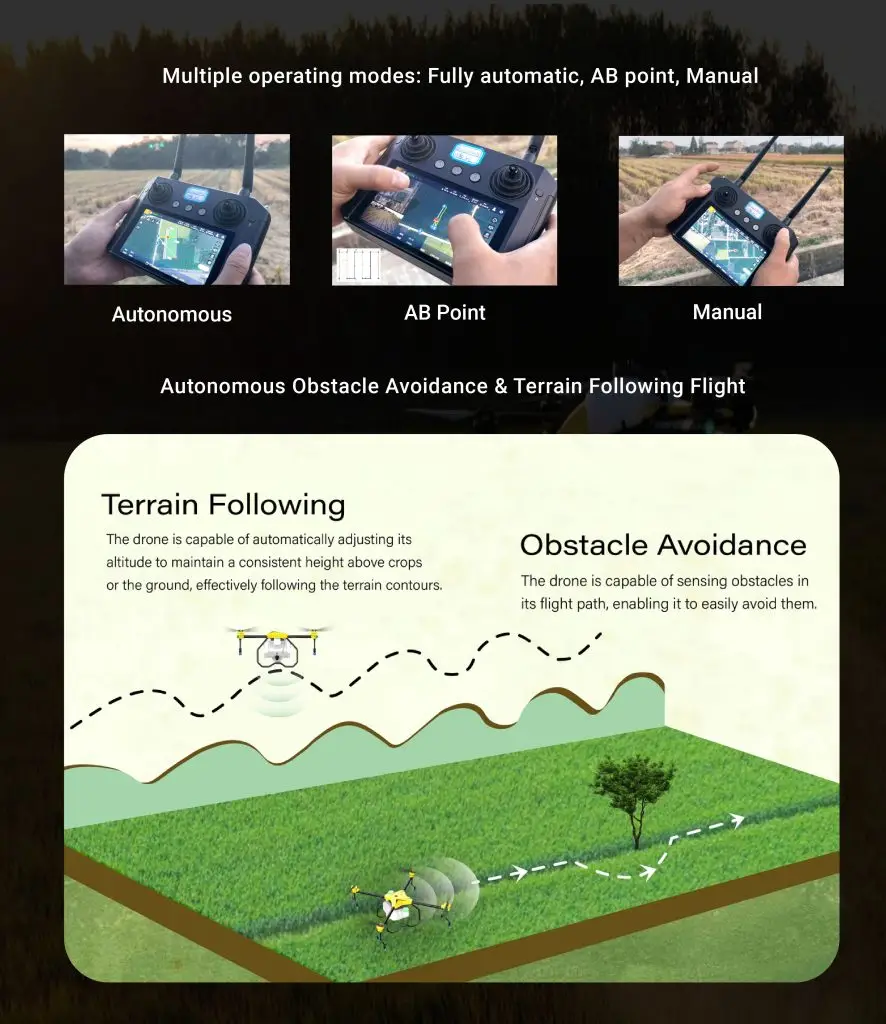

Three operating modes: Fully automatic, AB point, and Manual.
Universal Applications

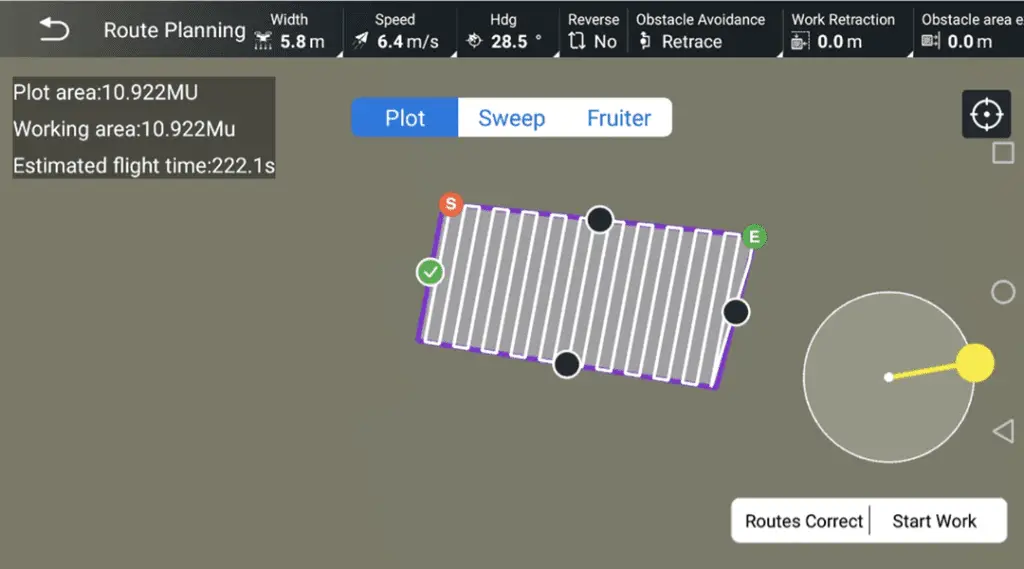

Easy Field Planning: Plot Mode

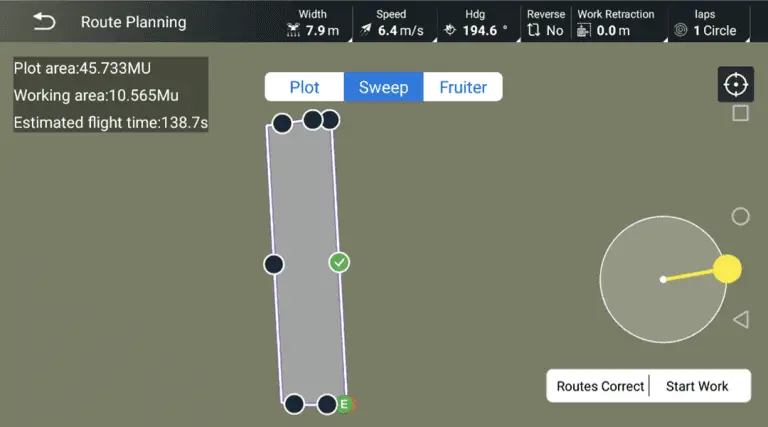

Easy Field Planning：Sweep Mode

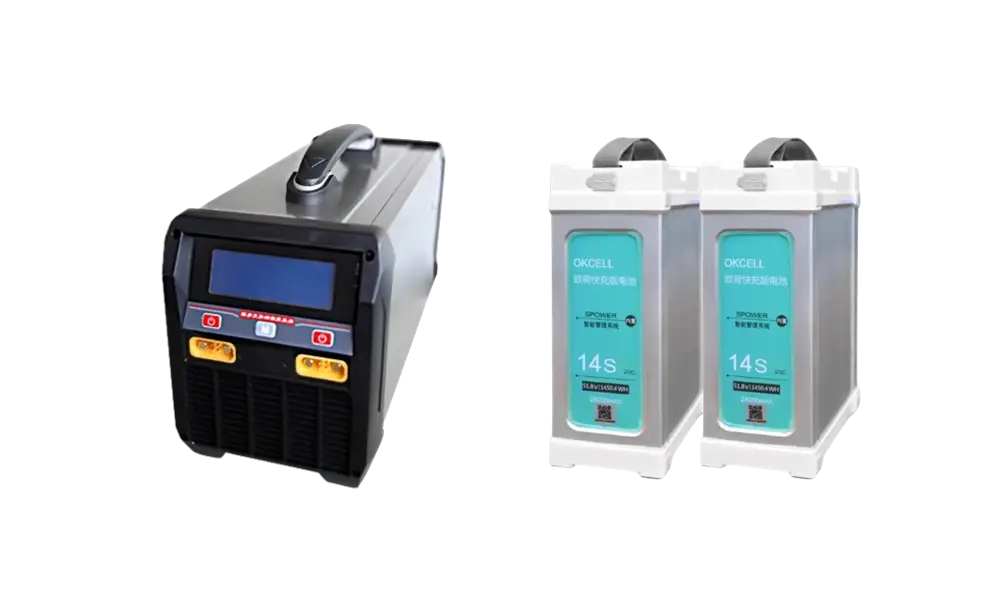

Standard Configuration
- 14S 28000mAh Lithium-polymer Intelligent battery X2
- Dual-channel high voltage intelligent charger X2
- Equipped with 14S 28000 mAh intelligent batteries and a rapid intelligent charger
- Optimized for quick charging and continuous operation.
- Ultra-fast charging capability

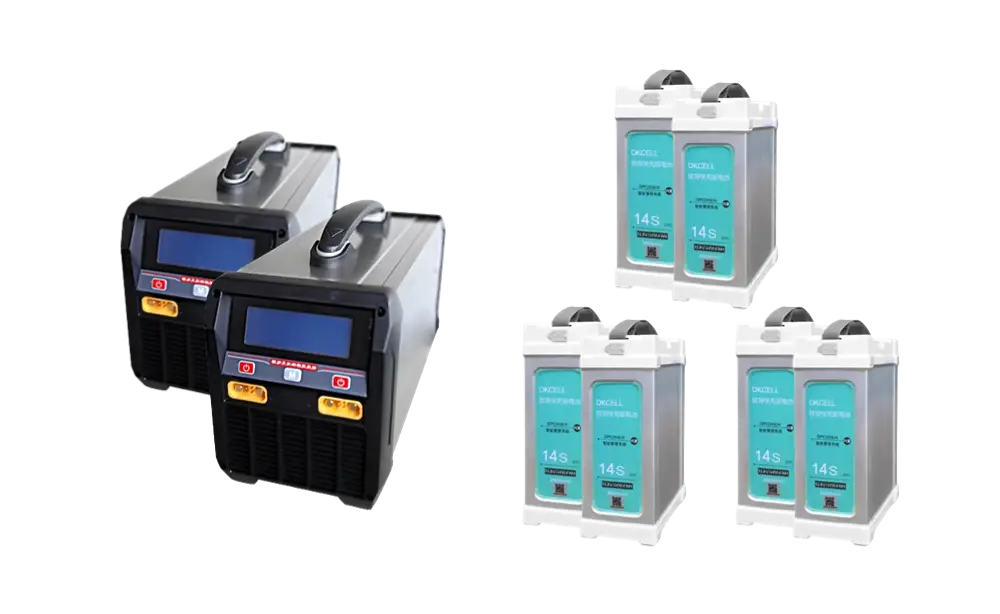

For Continuous Operation
- 14S 28000mAh Lithium-polymer Intelligent battery X6
- Dual-channel high voltage intelligent charger X2
- Unlimited charging
- Anti-collision, shockproof, anti-penetration, and over-temperature protection
- Automatic internal balancing of battery voltage for optimal performance

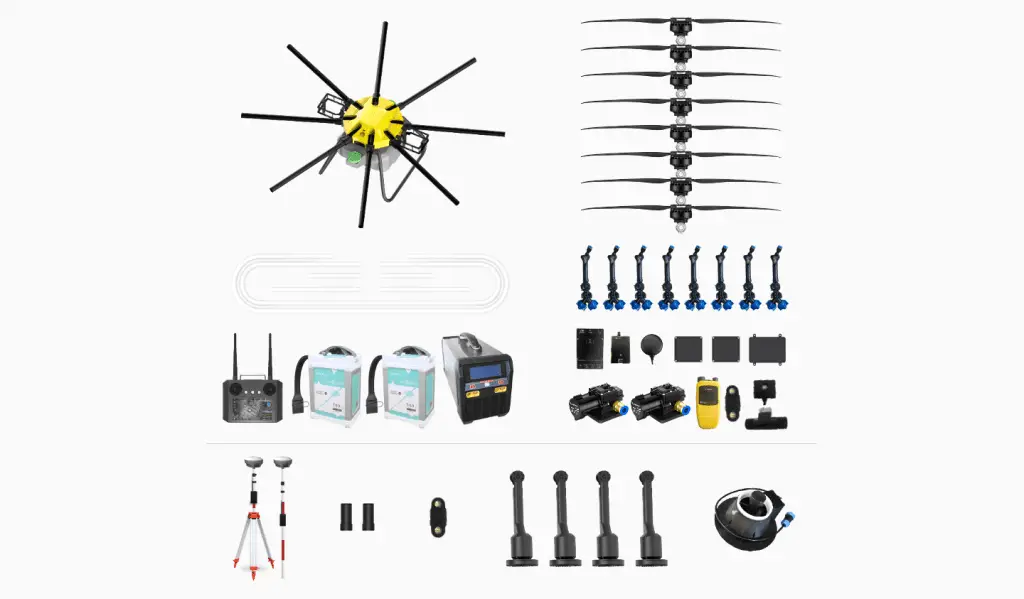

Spraying & Spreading Dual System
Frame X1
Propulsion Motor X8
Spray Nozzles X8
Water Pump X2
Flow Meter X1
Flight Control X1
Power Module X1
Handheld Survey Box X1
Terrain Following Radar X1
Front Obstacle Avoidance Radar X1
Rear Obstacle Avoidance Radar X1
GNSS (GPS/Beidou/GLONASS) X1
Status Indicator Light X1
FPV Camera X1
Night Navigation Light X1
Remote Control X1
Intelligent Battery X2
Intelligent Charger X1
Advanced Agricultural Drone System
Frame X1
Propulsion Motor X8
Spray Nozzles X8
Water Pump X2
Flow Meter X1
Flight Control X1
Power Module X1
Handheld Survey Box X1
Terrain Following Radar X1
Base Station RTK X1
RTK Module X2
Front Obstacle Avoidance Radar X1
Rear Obstacle Avoidance Radar X1
GNSS (GPS/Beidou/GLONASS) X1
Status Indicator Light X1
FPV Camera X1
Night Navigation Light X1
Remote Control X1
Intelligent Battery X2
Intelligent Charger X1
Centrifugal Nozzles X4
Spreading Disc X1
