Description

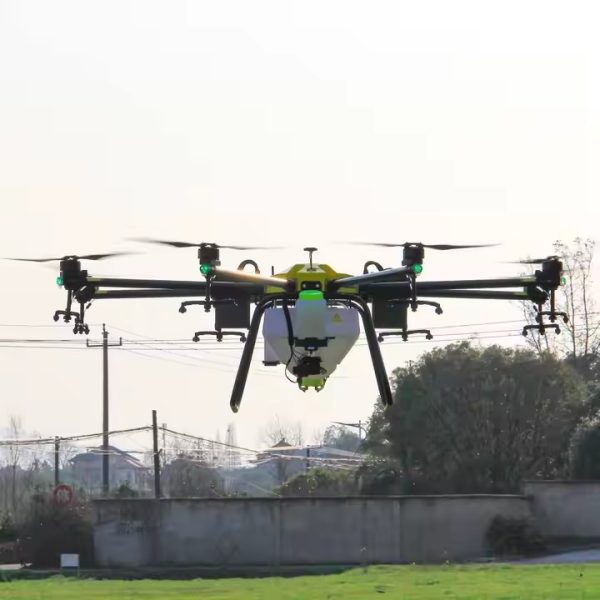

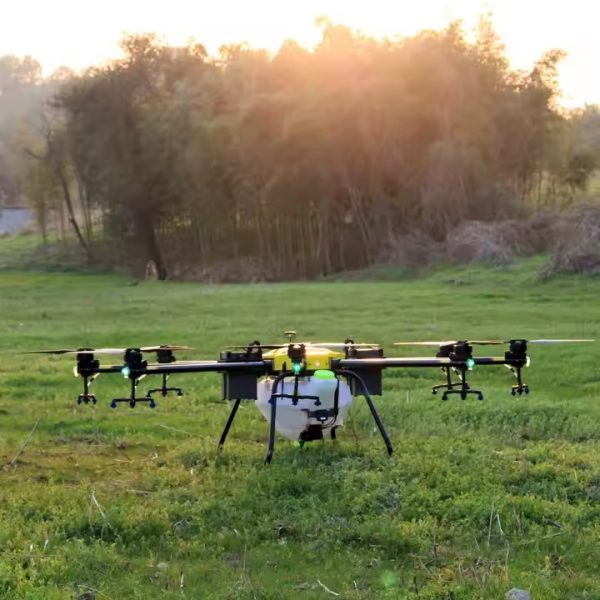

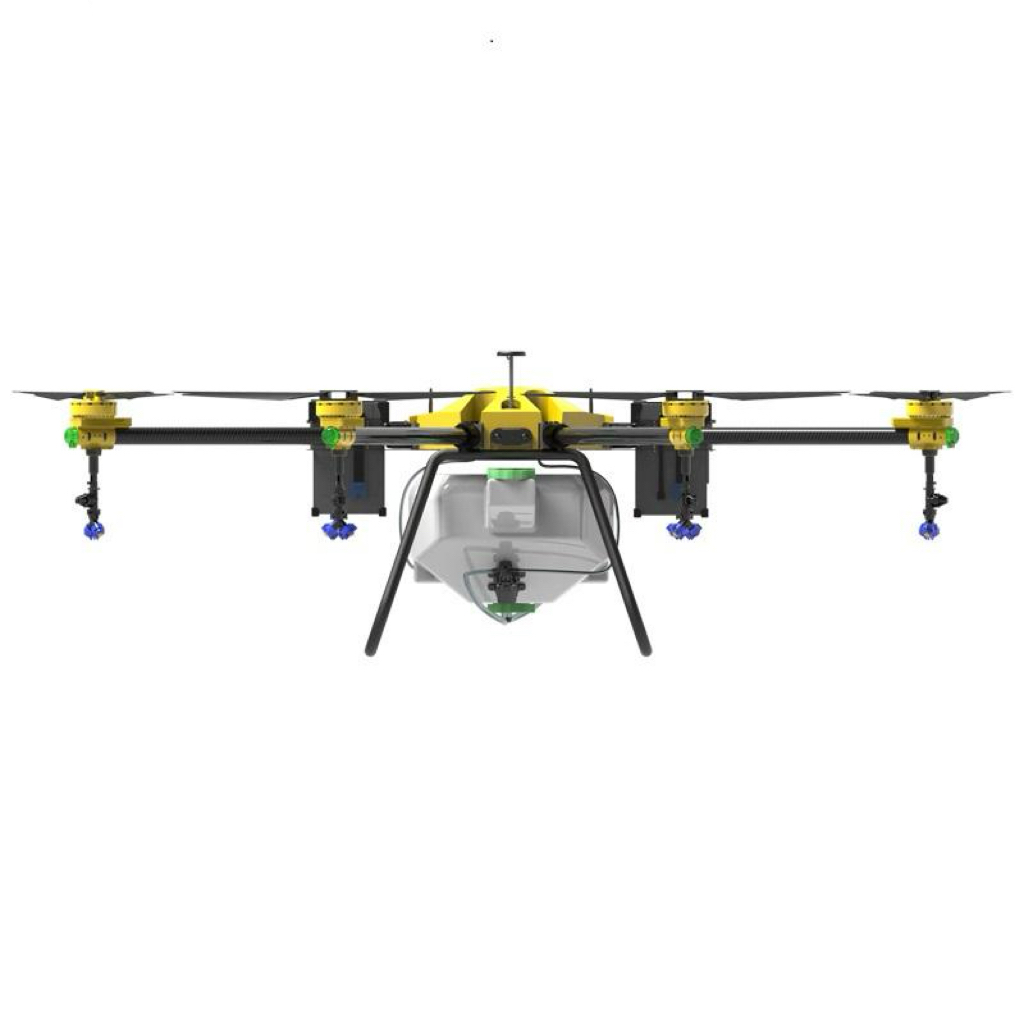

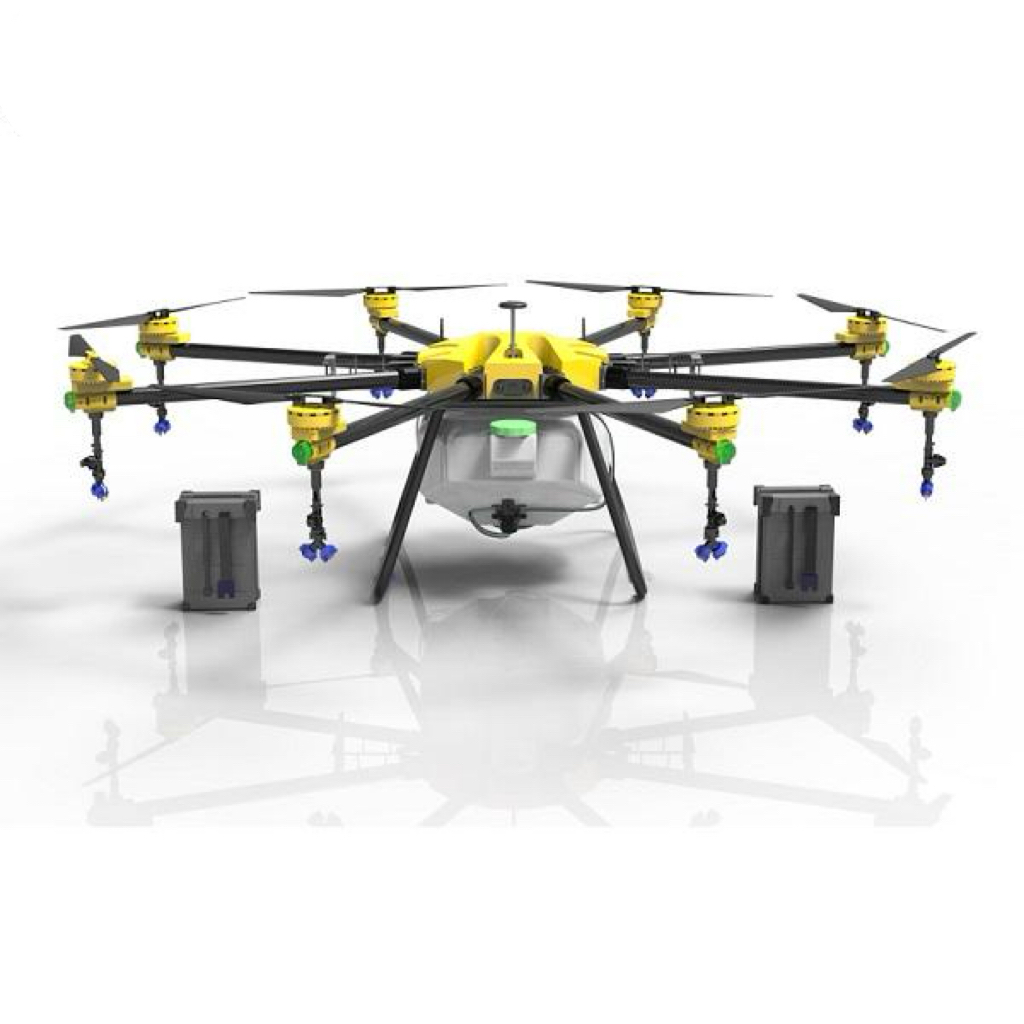

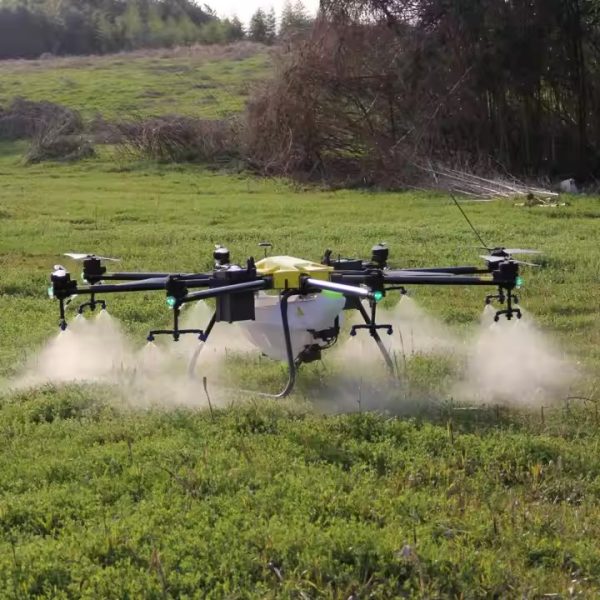

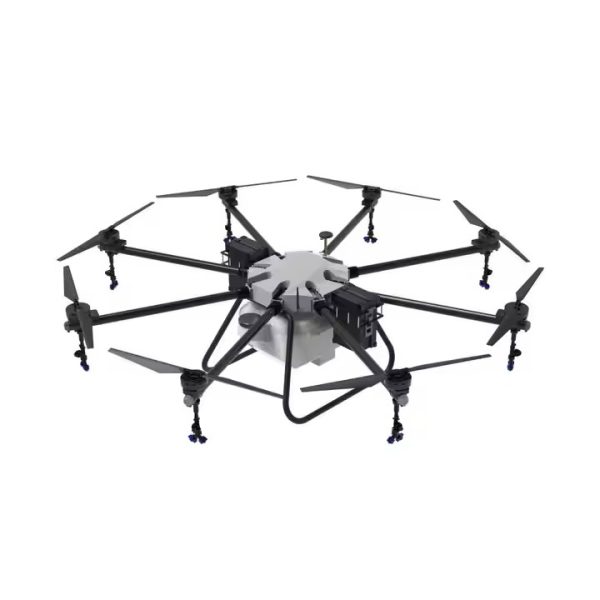

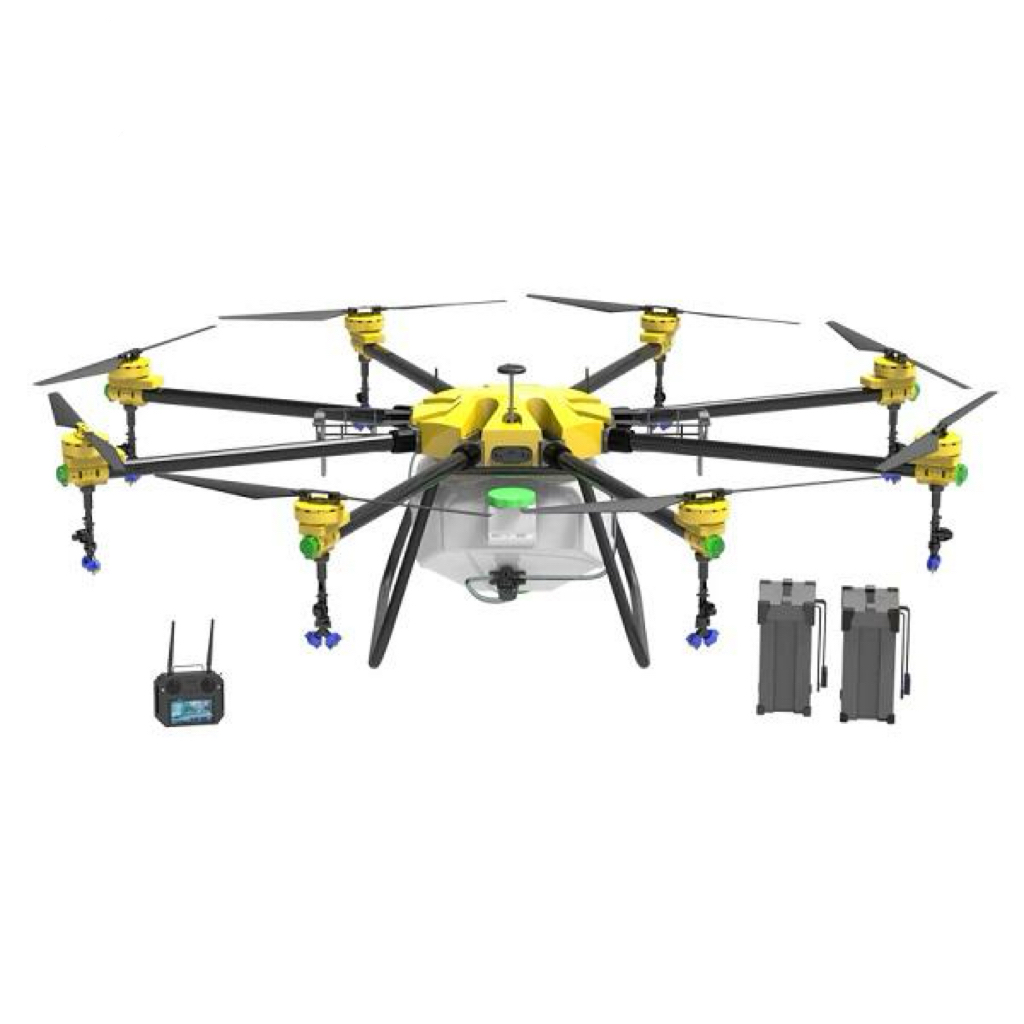

S120 52L (13.74 gal) Agricultural Drone

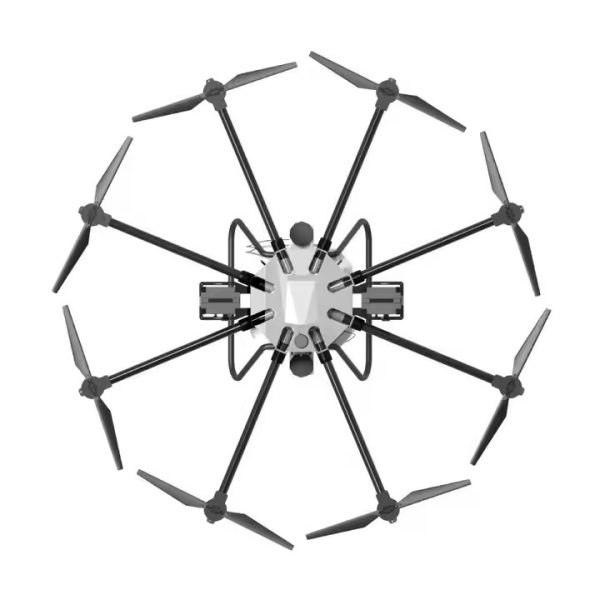

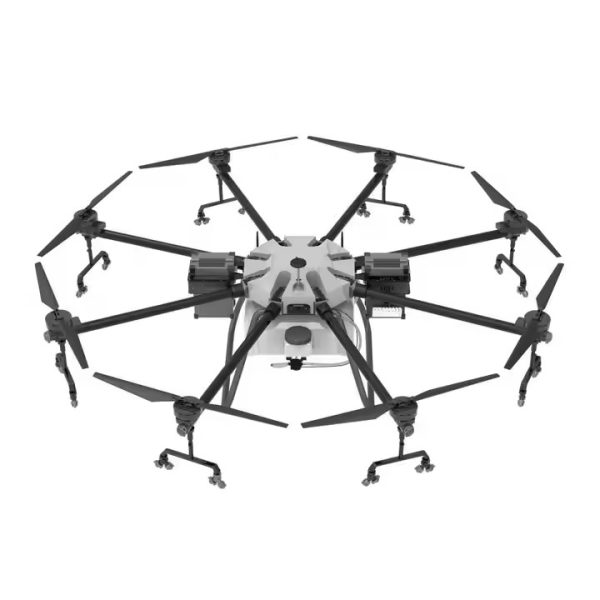

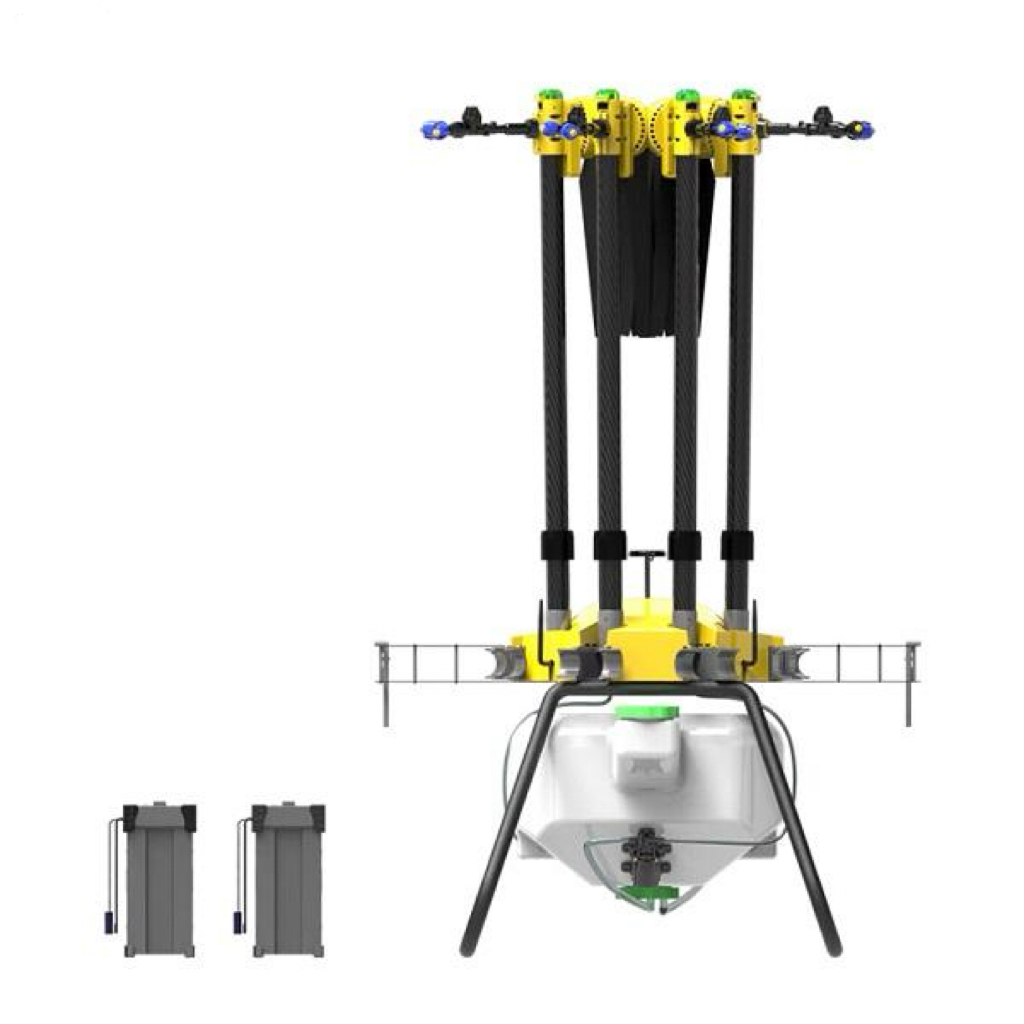

S120 Model features a unique 8-axis upward-folding design, optimizing storage and transportation space. Equipped with a 52L（13.74 gal）liquid spraying and a 60kg (132.28 lb)solid spreading capacity, it’s ideally suited for extensive agricultural management. Since its release in 2017, this drone has demonstrated remarkable stability and durability in diverse markets worldwide, making it a reliable choice for large-scale farming operations.
| Specification | Details | ||
| Model Number | S120 52 L (13.74 gal) Agricultural Drone | Weight Excluding Battery | 44 kg (97 lb) |
| Structural Design | 8-Axis Foldable | Weight Including Battery | 61 kg (134.48 lb) |
| Waterproof Grade | IP67 | Max. Take-off Weight | 113 kg (249.12 lb) |
| Max. Flight Altitude | ≤20 m | Max. Flight Speed | 15 m/s |
| Hovering Duration | 15 mins with no-load; 5 mins with full-load | Tank Capacity | 52L (13.74 Gallon) |
| Camera Type | HD FPV Camera | Spray Width | 6-16 m |
| Battery | 14S 28000mAh Intelligent Battery | Nozzle Type | High-pressure Nozzles |
| Dimensions (Folded) | 830 x 860 x 1925 mm | Atomizing Size | 30-400 μm |
| Dimensions (Unfolded) | 3050 x 3050 x 910 mm | Max. System Flow Rate | 16 L/min (4.23 gal/min) |
| Material | Carbon fiber + 7075 aviation aluminum | Working Efficiency | 23 Hectare/h (56.83 acre/h) |

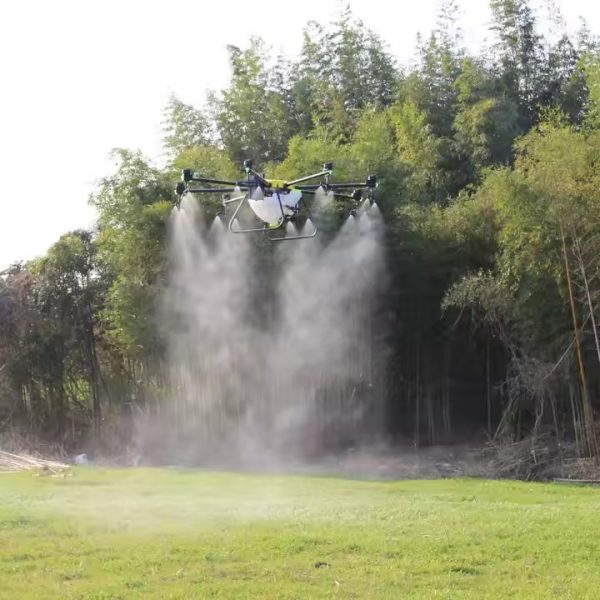

Spraying & Spreading Dual System. 52L (13.74 gal) liquid spraying and a 60kg (132.28 lb) solid spreading capacity,
Max. Flow Rate 20 L (5.28 gal)/min. Droplet Size Range 60-400 μm Spray Width 6-12 m (19.69 -38.37 ft).
Operate Efficiency 23 Hectare(56.83 acre)/h
Terrain Following Radar allows for adaptive flight in varied landscapes, maintaining a consistent altitude, and enhancing safety and precision.
Night Navigation Flight Mode

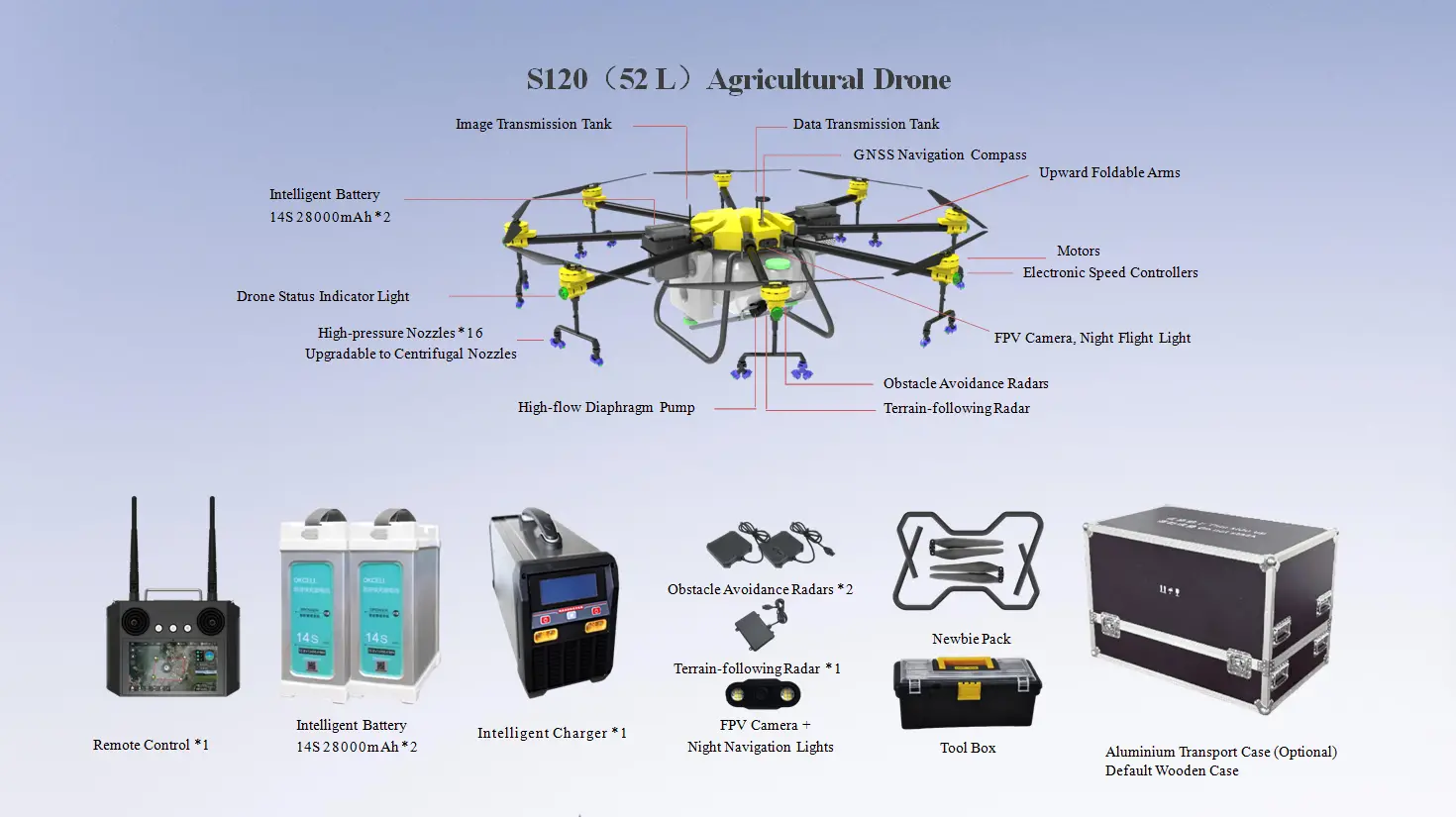

Open Box of S120 52 L (13.74 gal) Agricultural Drone & Accessories

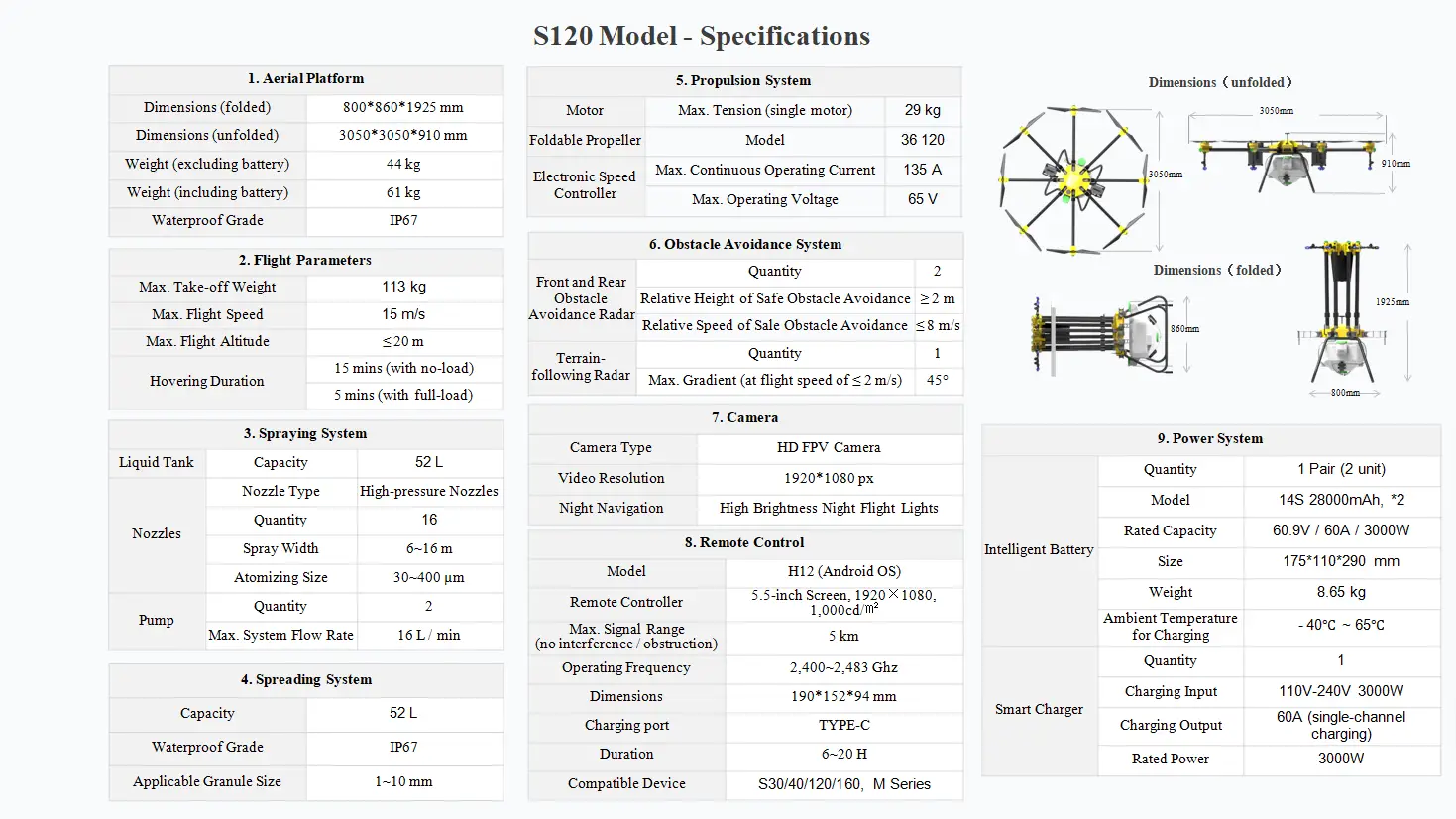

S120 Specifications
Three operating modes: Fully automatic, AB point, and Manual.
Universal Applications
Easy Field Planning: Plot Mode
Easy Field Planning：Sweep Mode
Standard Configuration
14S 28000mAh Lithium-polymer Intelligent battery x2
Dual-channel high voltage intelligent charger x1
For Continuous Operation
14S 28000mAh Lithium-polymer Intelligent battery x6
Dual-channel high voltage intelligent charger x2
Spraying & Spreading Dual System
Frame x1
Propulsion Motor x8
Spray Nozzles x8
Water Pump x2
Flow meter x1
Flight control x1
Power Module x1
Handheld Survey Box x1
Terrain Following Radar x1
Front Obstacle Avoidance Radar x1
Rear Obstacle Avoidance Radar x1
GNSS (GPS/Beidou/Glonass) x1
Status Indicator Light x1
FPV Camera x1
Night Navigation Light x1
Remote Control x1
Intelligent Battery x2
Intelligent Charger x1
Advanced Agricultural Drone System
Frame x1
Propulsion Motor x8
Spray Nozzles x8
Water Pump x2
Flow meter x1
Flight control x1
Power Module x1
Handheld Survey Box x1
Terrain Following Radar x1
Front Obstacle Avoidance Radar x1
Rear Obstacle Avoidance Radar x1
GNSS (GPS/Beidou/Glonass) x1
Status Indicator Light x1
FPV Camera x1
Night Navigation Light x1
Remote Control x1
Intelligent Battery x2
Intelligent Charger x1
Base Station RTK x1
Centrifugal Nozzles x4
RTK Module x2
Spreading Disc x1
