This device features a CREE-XHP70 bulb, delivering 4000 lumens of brightness with three adjustable settings: high, low, and strobe. The color temperature is 5000K white light.
Construction:
Frame and casing: Aviation aluminum, CNC processed, anodized surface.

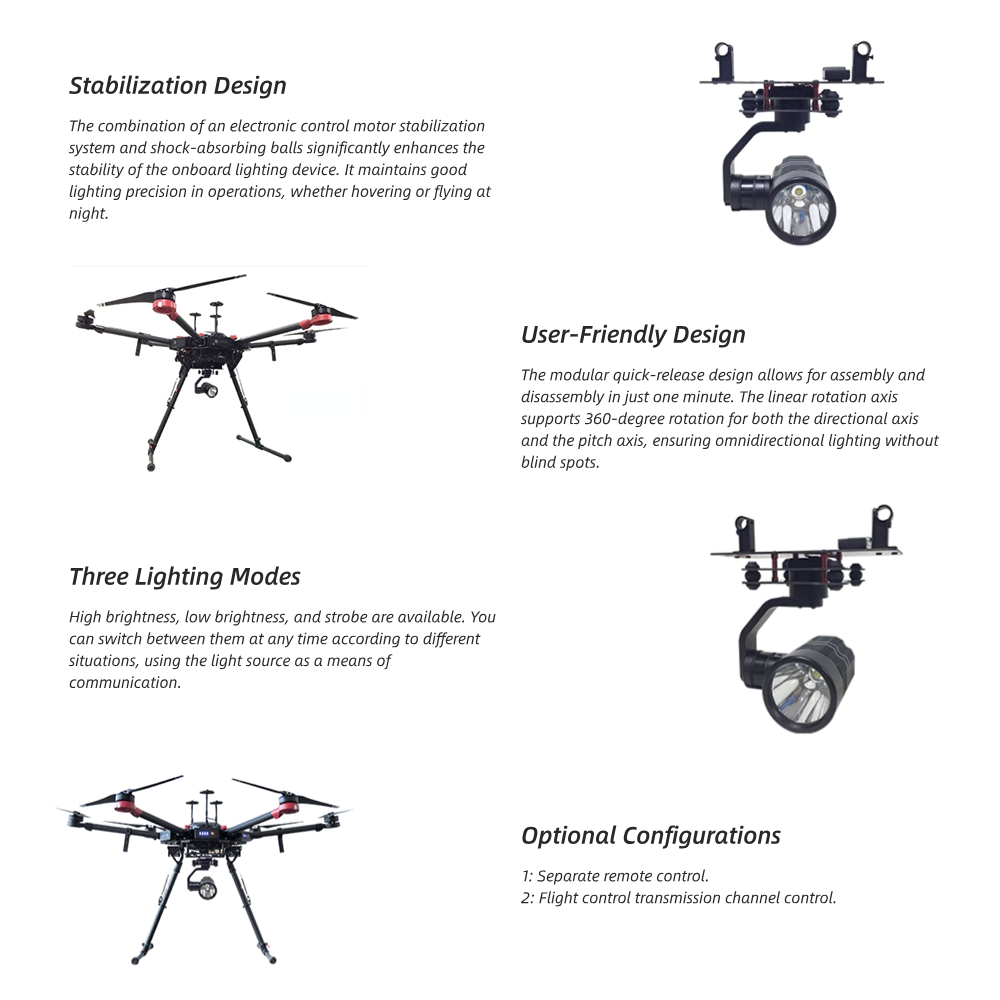

Gimbal: Electronic gyro stabilization, 360° rotation (directional axis), 70° pitch control (up/down).
Power Supply:
Voltage: 12V to 30V.
Power interface: JST plug (positive side up, no reverse polarity protection).
Control port: Dupont 2.54mm signal wire, 5V output for receiver, controls direction, pitch, light, and mode.
Mounting & Installation:
Quick-release components pre-installed.
Assembly: Align cover with drone’s mounting pole, fasten with hand screw, connect power cable to the drone’s power plug.
Remote Control (optional):
Requires 4 AA batteries (not included).
Left joystick: Controls light on/off and mode switching.
Right joystick: Controls light direction (up/down/left/right).
If turned off, the device retains the last command.
Compatible Model: L120
Retail Price:
Contact Us Via Whatsapp, Email, or Web Form.
| Specification | Details | ||
| Lighting Device Dimensions | 198mmx178mmx105mm | Color Temperature | 6500K |
| Material | 7075 Aerospace Aluminum | Effective Lighting Distance | 300 meters |
| Weight | 1KG | Control Signal Type | PWM Signal Control |
| Rated Power | 30W | Power Supply | 3s – 4s Li-Po Battery |
| Rated Brightness | 4000 Lumens | Stabilization Method | Electronic Motor Stabilization |
| Beam Diameter | 3 meters | Linear Rotation Axis | 360 degrees of azimuth rotation, 135 degrees of pitch rotation |
Our commitment doesn’t end with products; we’re here to offer comprehensive technical support and training, empowering you to excel in your local markets.
We offer a robust production capacity that can handle orders of hundreds of units at once, complemented by a strong transportation network and customs clearance capabilities, delivering to most countries worldwide.
We offer tailored services, allowing our products to be personalized with your preferred colors, logos, patterns, and ground stations, catering specifically to your brand’s unique requirements.
Comprehensive training including manuals, video tutorials, online and on-site guidance, and on-demand training, plus maintenance tutorials and spare parts supply.
Receive prompt assistance from our network of local distributors, ensuring support is always close at hand.
For product purchases, drone customization, technical consultation, or agency inquiries, please kindly provide your contact details below.
We will reach out to you promptly.
