Description
| Specification | Details | ||
| Model Number | 10x Dual-light Pod | Power | Dynamic 7.5W |
| Voltage | 3S / 6S | Supported Modes | 1080P 30fps |
| Angle Jitter in Pitch and Roll Directions | ±0.02° | Angle Jitter in Horizontal Direction | ±0.03° |

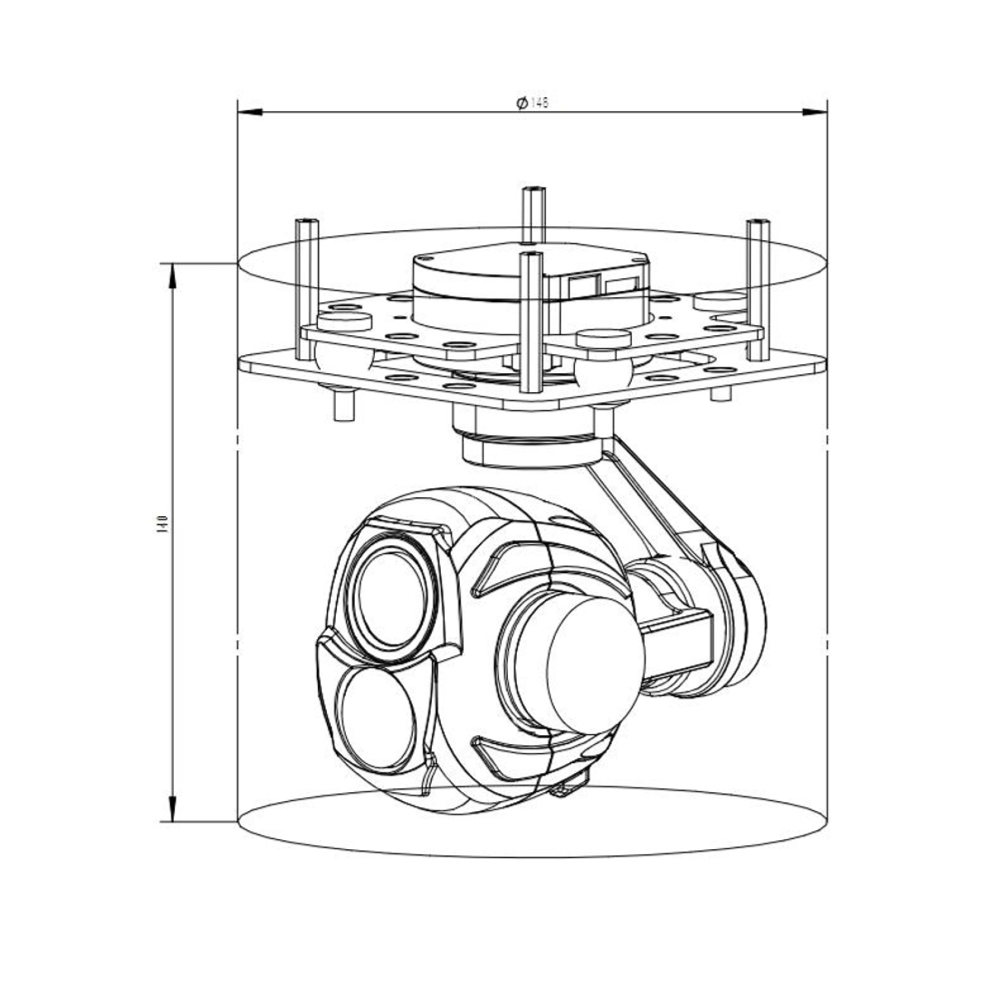

| Overall Size | 80mm X 118mm X 137mm | Resolution | 256*192 pixels |
| Operating Environment | -10°C ～ +45°C / 20%～ 80% RH | Pixel Pitch | 12 micrometers |
| Storage Environment | -20°C ～ +60°C / 20%～ 95% RH | Wavelength Range | 8-14 micrometers |
| Weight | 434 ± 20 grams | Thermal Sensitivity (NETD) | <= 65mk at 25°C with F1.0 |
| Roll Angle Range | -45° to +45° | Field of View (FOV) | 7mm lens, FOV: 24° x 18° |
| Pitch Angle Range | -45° to +135° | Control Mode | Supports network IP control and serial port control |
| Yaw Angle Range | -240° to +240° | One-Key Return to Center | Quickly returns to the initial position with one key |
